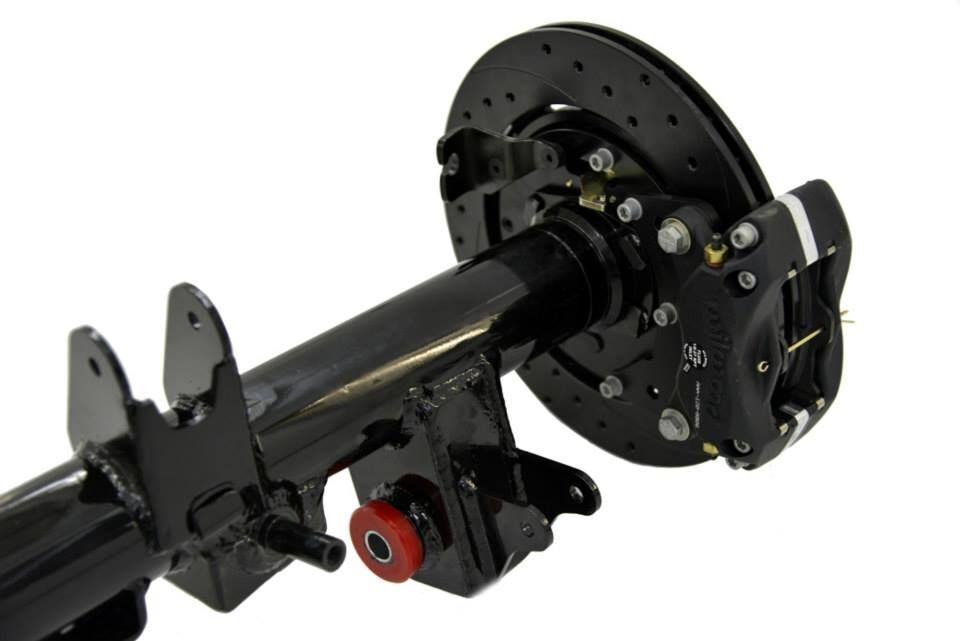

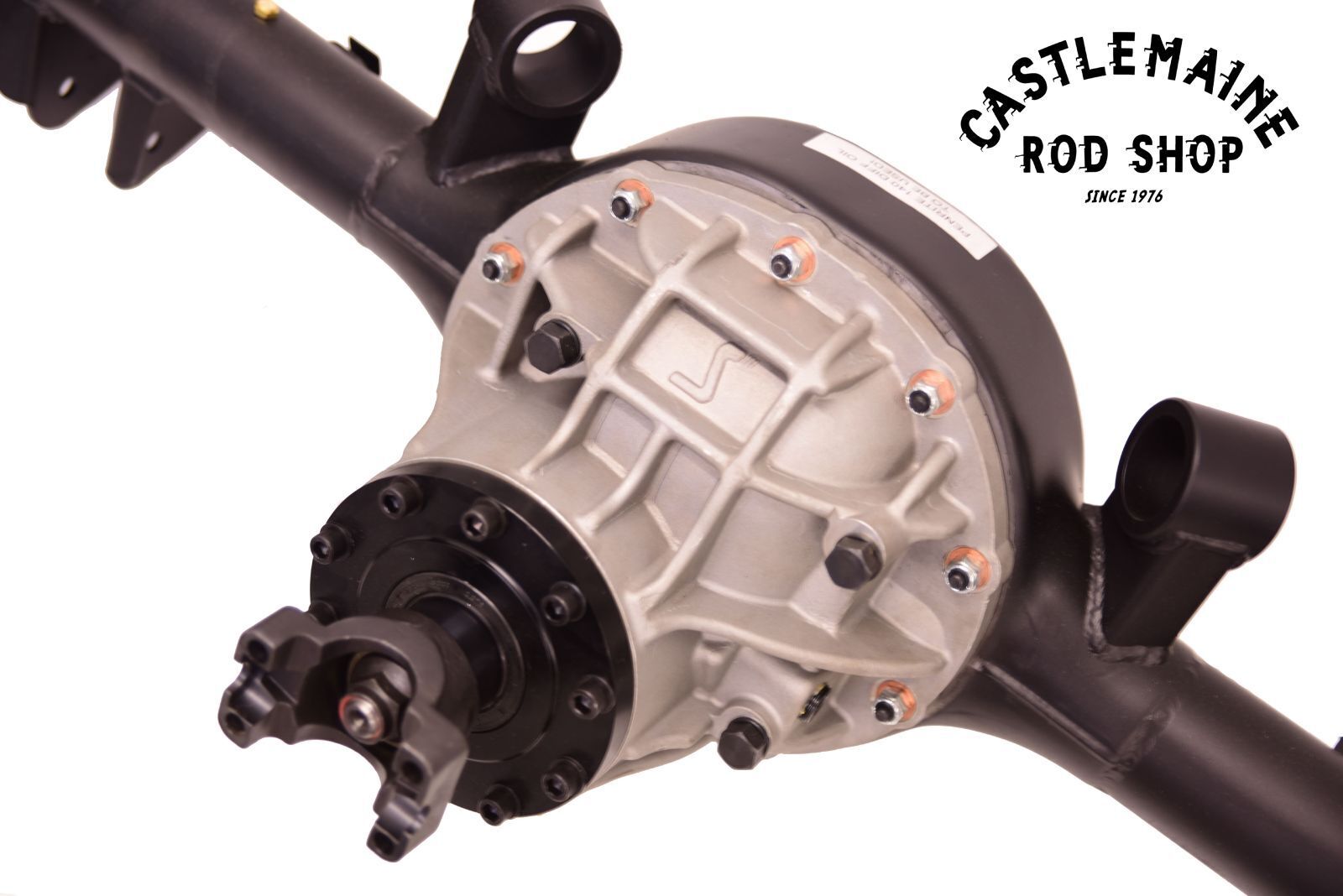

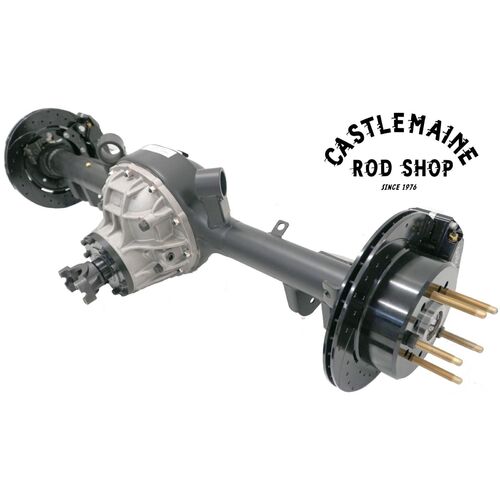

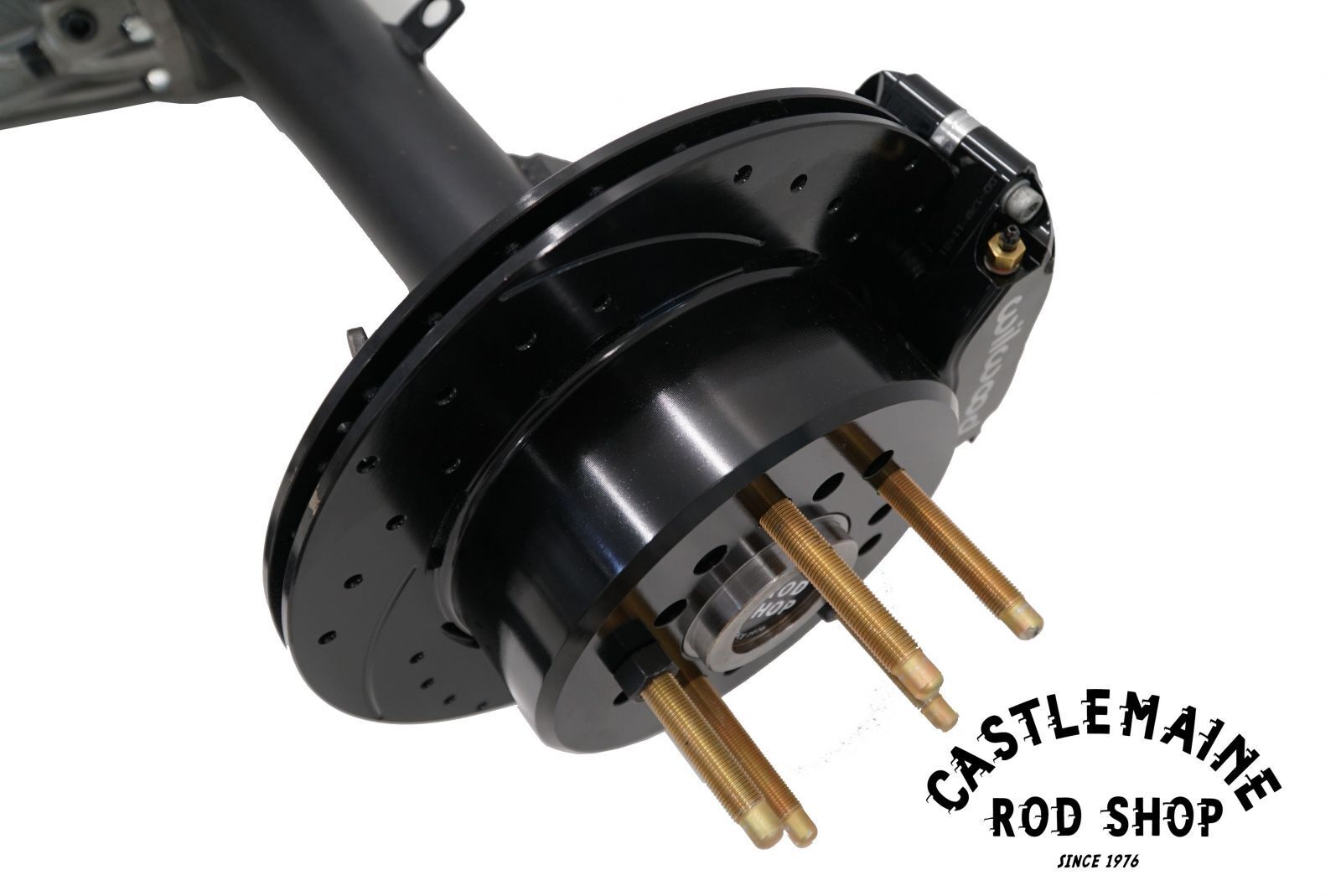

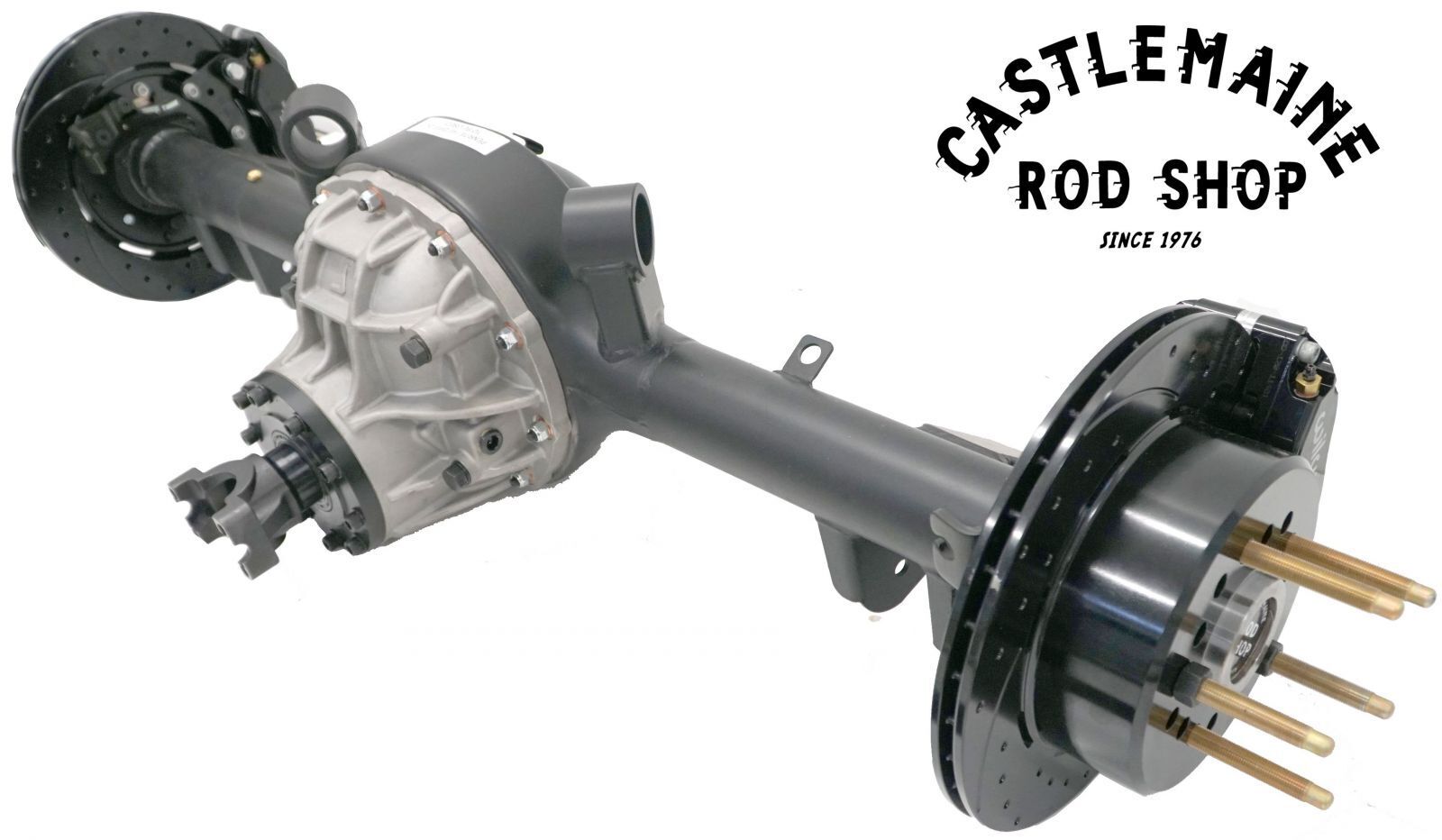

9" Diff for RX2 Mazda
Price Ranges from $3500.00 to $5000.00
SKU: 9dmrx2
PLEASE NOTE: There is a Build Time for this Product (Minimum 6 Weeks). If you need an Estimated Date of Delivery then PLEASE Contact Us on 03 54722853 before Purchasing.
The Diff's are Available in Multiple Widths, the Table & Diagram below Shows the Maximum & Minimum Widths and How to Measure
If Length is NOT the Maximium (Standard) Width YOU ARE Responsible for the Measurements, we WILL NOT Accept Returns
| Maximum (Standard) | Minimum |
|---|---|
| 1345mm | 1290mm |
Diff comes Complete with the Following;
- USA Manufactured Axles (31 Spline), 1541 Forged Induction Heat Treated
- 10mm Heavy Duty Flanges
- 1350 Yoke
- 5mm Thick Axle Tubes
- Ratio of Your Choice

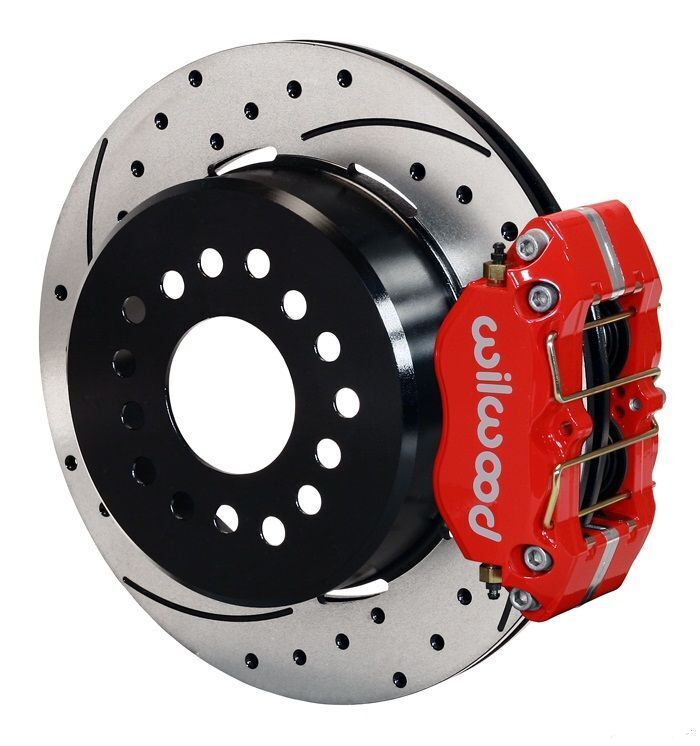

- Choice of Drum or Wilwood Disc Brakes
- Suspension Mounts
- 3" long 1/2" ARP Wheel Studs
- CNC Laser Cut and Bent Brackets
- Billet CNC Machined Ends
- Super Heavy Duty 6mm thick Smooth Back Housing
These Diff's are Rated between 800 & 900 RWHP
Full Spool Diff's are recommended for Off Road use ONLY.
PLEASE NOTE: There is a Build Time for this Product (Minimum 6 Weeks). If you need an Estimated Date of Delivery then PLEASE Contact Us on 03 54722853 before Purchasing.
The Diff's are Available in Multiple Widths, the Table & Diagram below Shows the Maximum & Minimum Widths and How to Measure
If Length is NOT the Maximium (Standard) Width YOU ARE Responsible for the Measurements, we WILL NOT Accept Returns
| Maximum (Standard) | Minimum |
|---|---|
| 1345mm | 1290mm |
| SKU | 9dmrx2 |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 83.0000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.420m |
| Shipping Length | 1.650m |
