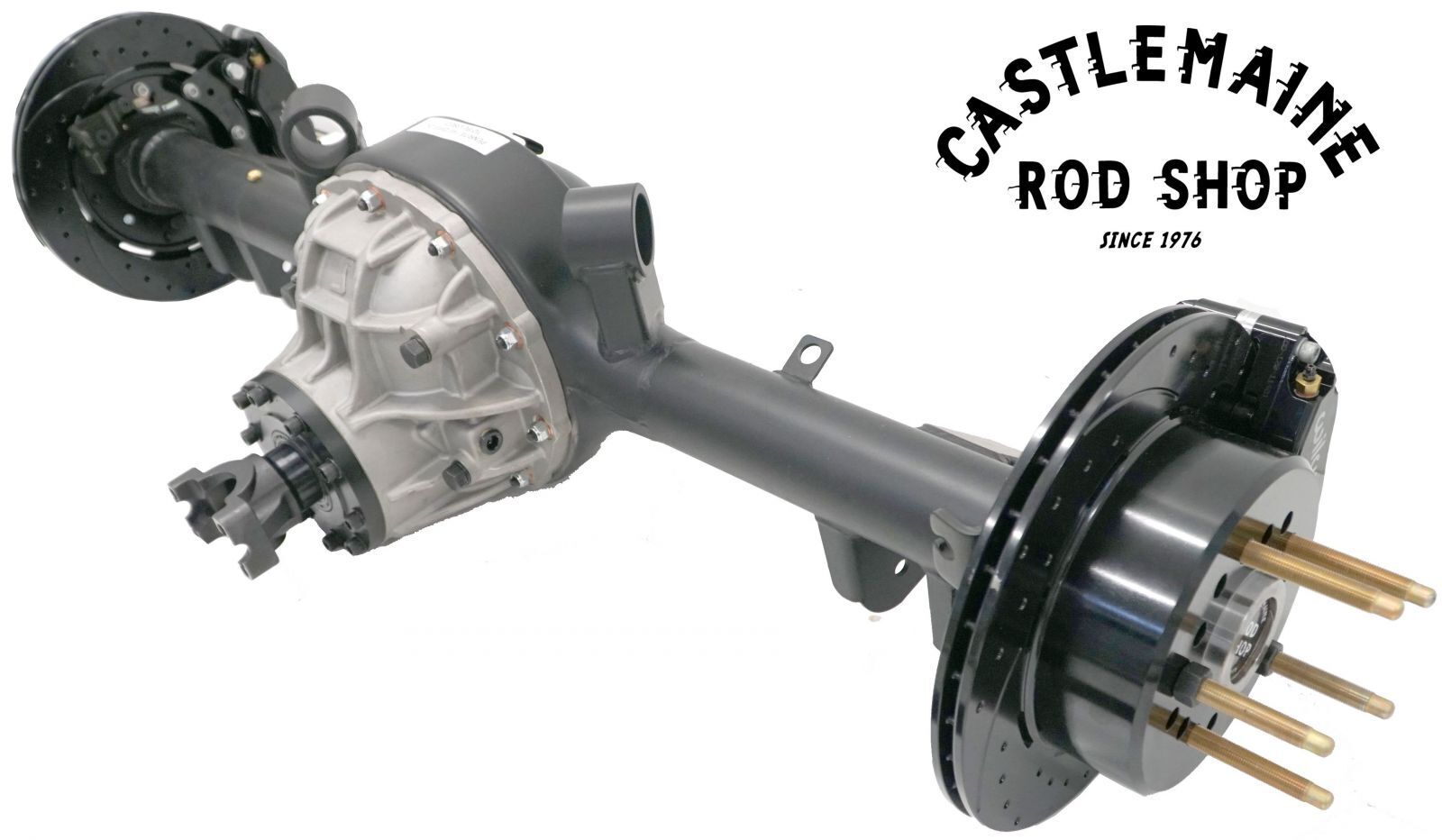

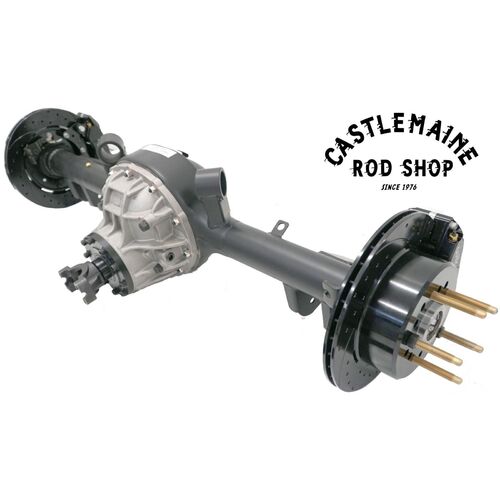

Diff comes Complete with the Following;

  • USA Manufactured Axles (31 Spline), 1541 Forged Induction Heat Treated
  • 10mm Heavy Duty Flanges
  • 1350 Yoke
  • 5mm Thick Axle Tubes
  • Ratio of Your Choice

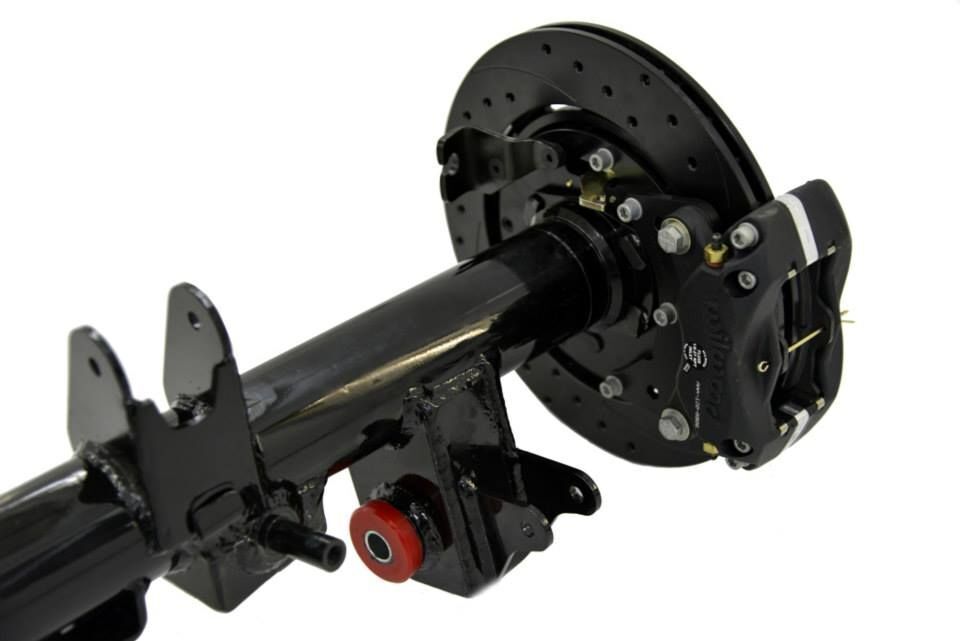

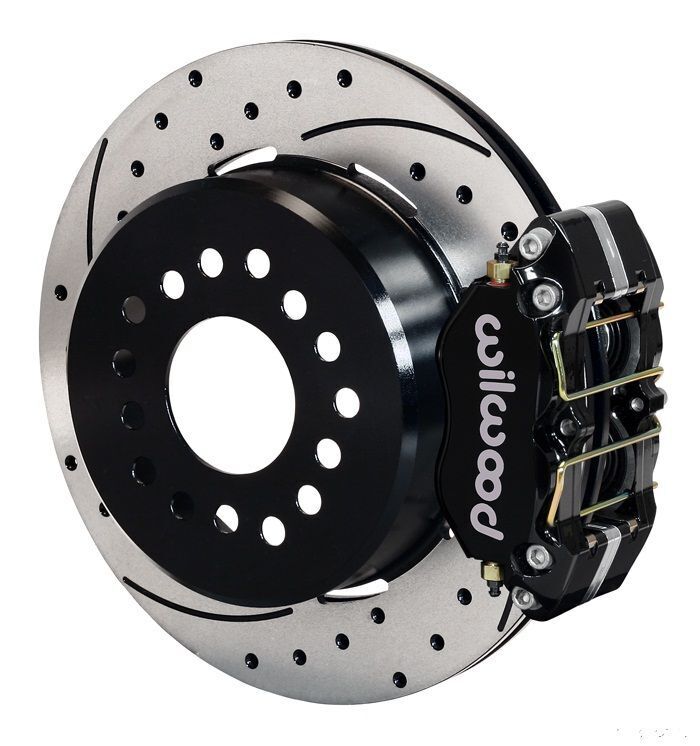

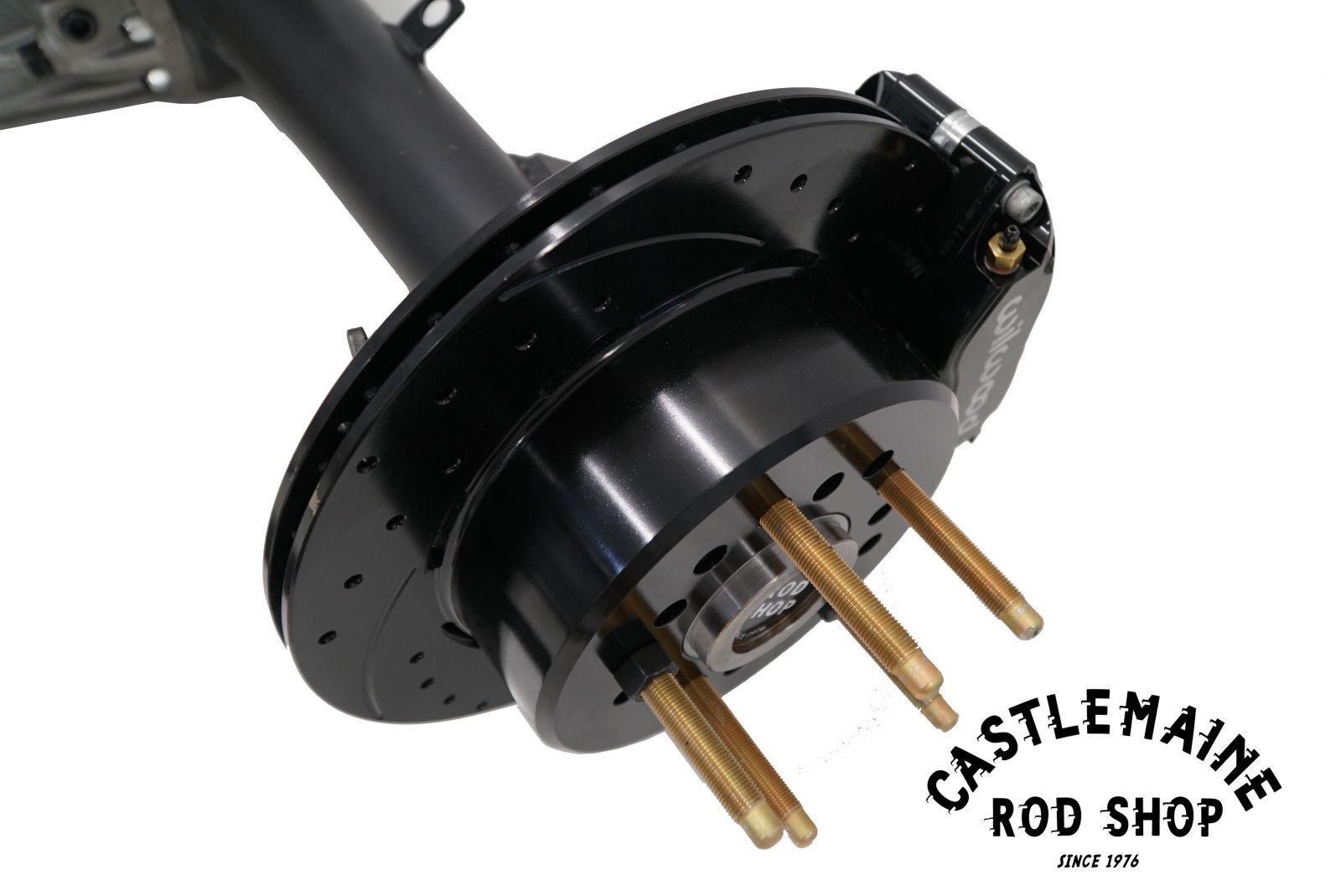

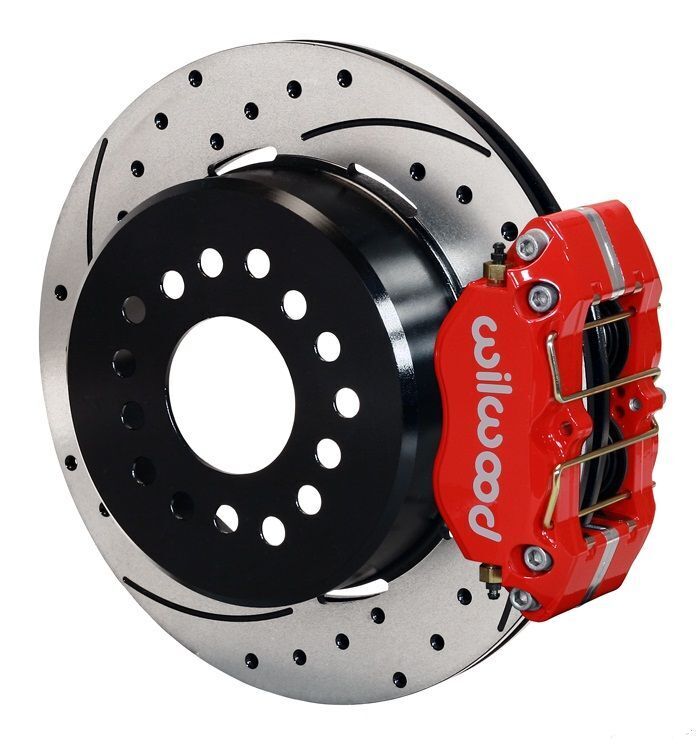

  • Choice of Drum or Wilwood Disc Brakes
  • Suspension Mounts
  • 3" long 1/2" ARP Wheel Studs
  • CNC Laser Cut and Bent Brackets
  • Billet CNC Machined Ends

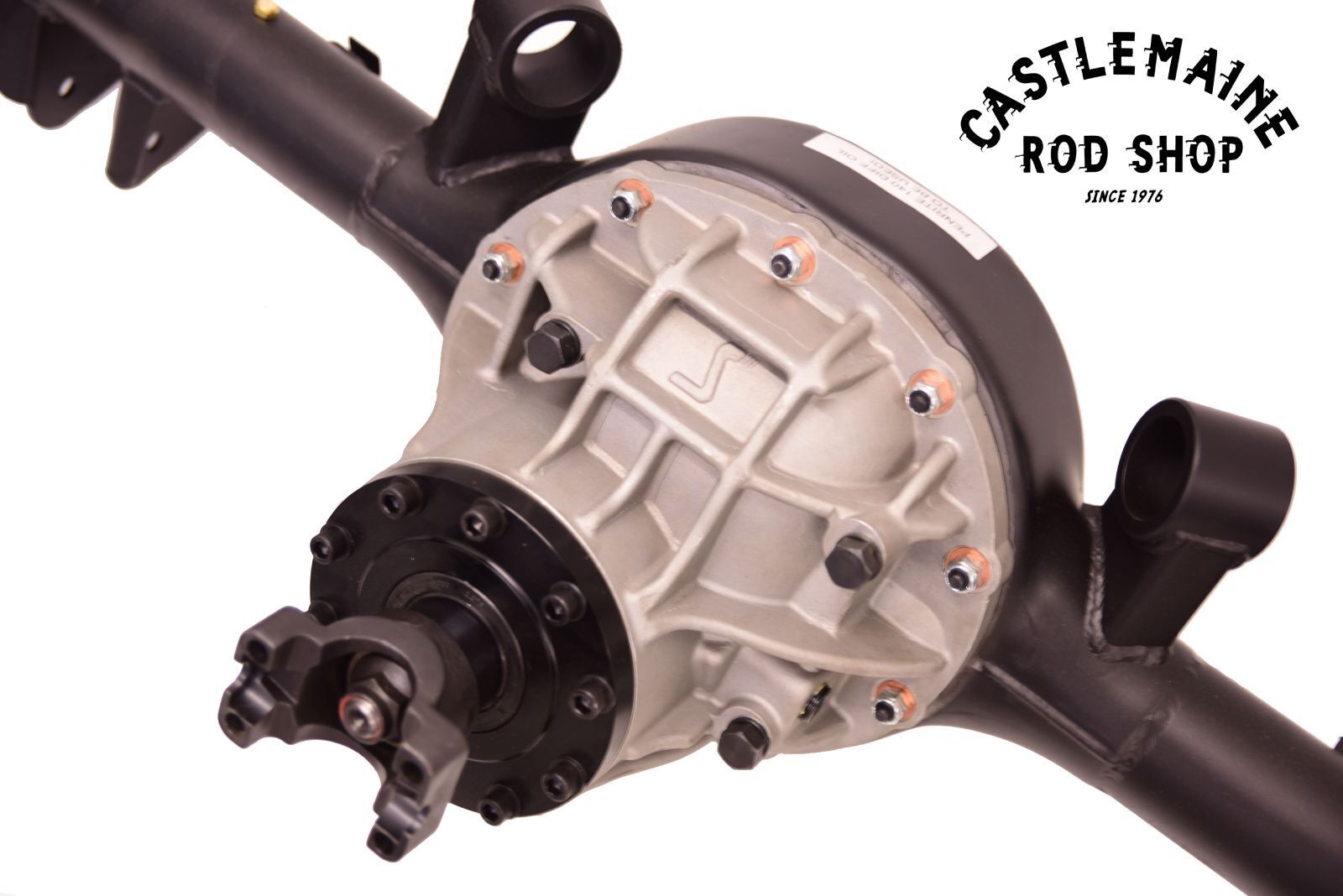

  • Super Heavy Duty 6mm thick Smooth Back Housing

These Diff's are Rated between 800 & 900 RWHP

Full Spool Diff's are recommended for Off Road use ONLY.

PLEASE NOTE: There is a Build Time for this Product (Minimum 12 Weeks). If you need an Estimated Date of Delivery then PLEASE Contact Us on 03 54722853 before Purchasing.

The Diff's are Available in Multiple Widths, the Table & Diagram below Shows the Maximum & Minimum Widths and How to Measure

If Length is NOT the Maximium (Standard) Width YOU ARE Responsible for the Measurements, we WILL NOT Accept Returns

Maximum (Standard) Minimum
1515mm 1435mm

SKU 9dvvhcm
Brand Castlemaine Rod Shop
Shipping Weight 100.0000kg
Shipping Width 0.420m
Shipping Height 0.420m
Shipping Length 1.650m
