Gearbox & Transmission Mounts (Rubber)
$50.00
or 4 payments of $12.50 with
Info
Make 4 interest-free payments of $12.50 fortnightly and receive your order now.

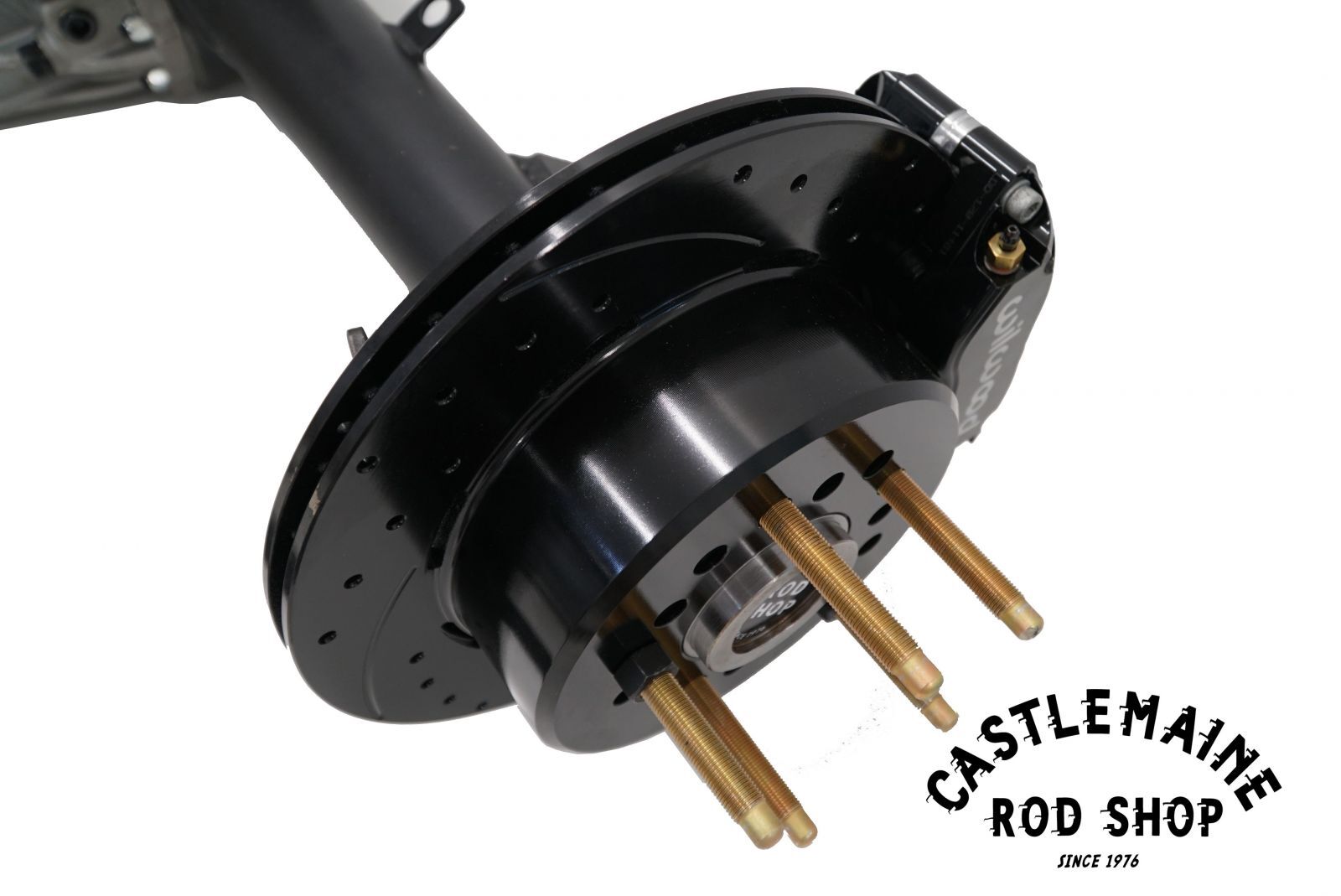

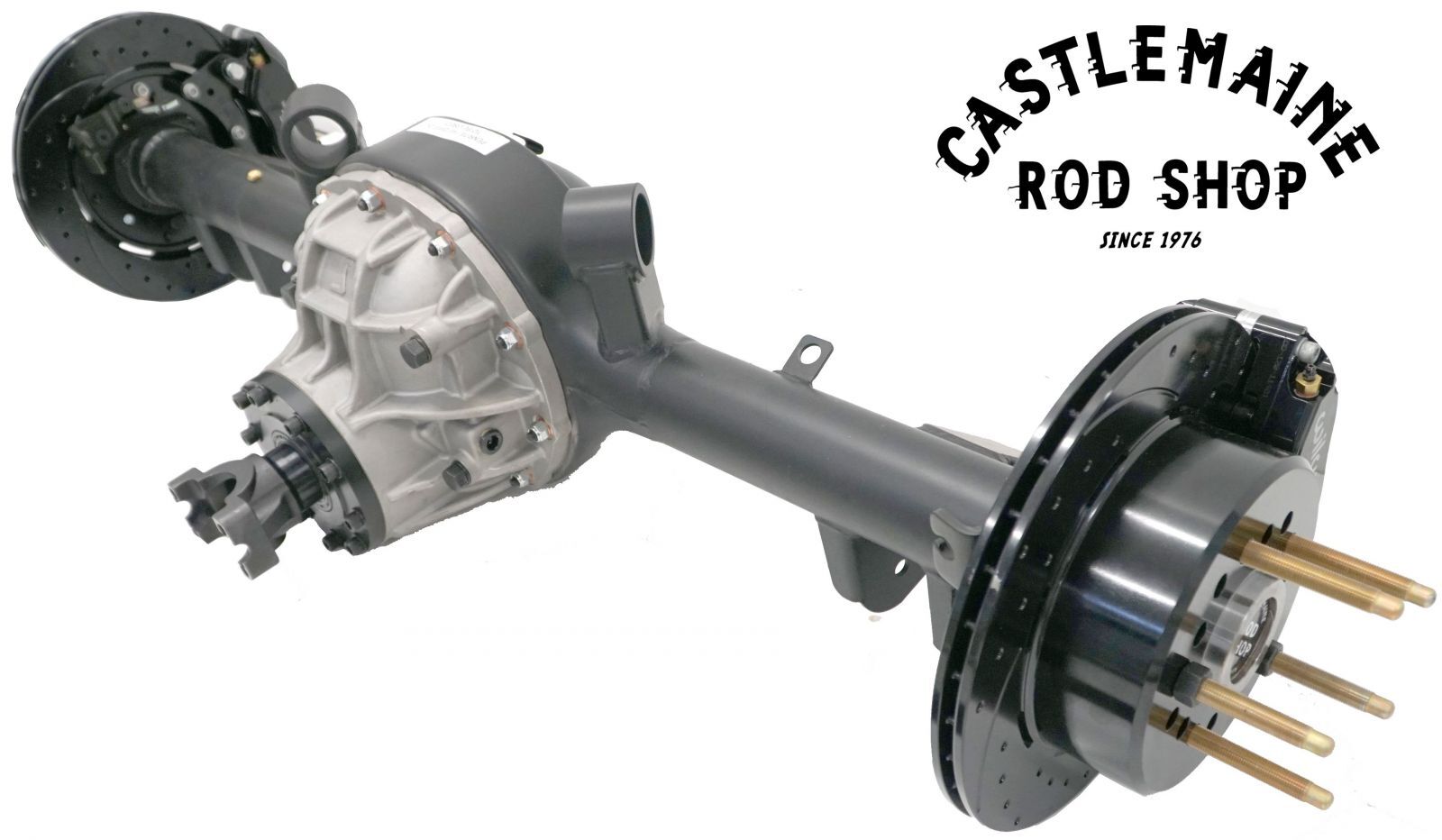

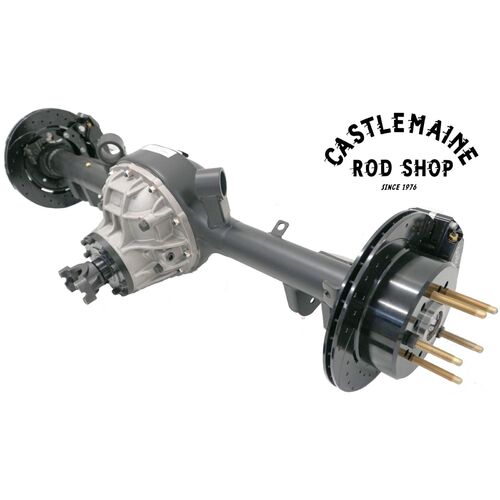

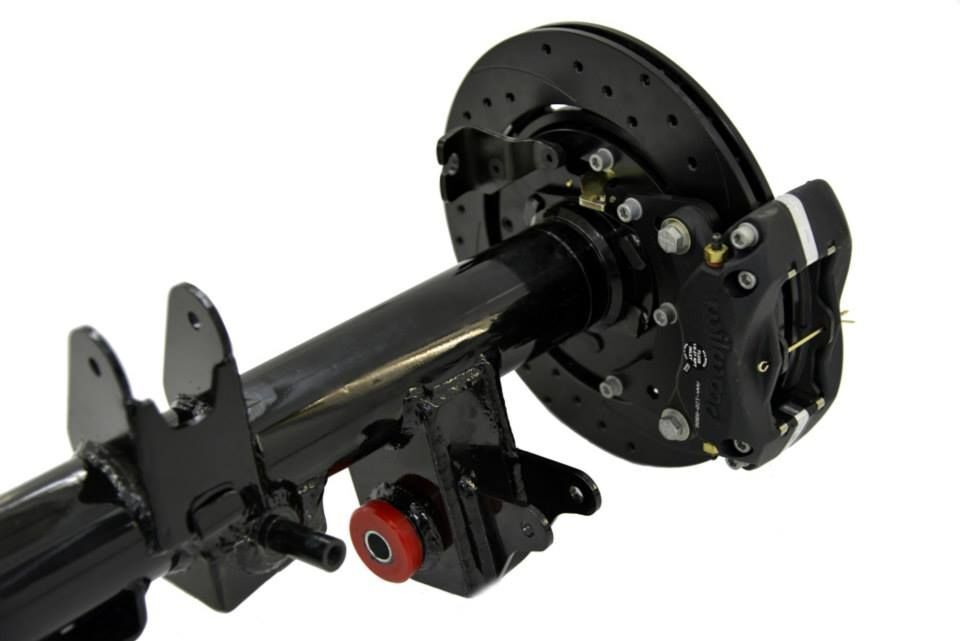

Ford F100 (1974) - 9" Diff (Centre: Full Spool; Disc Brakes)
SKU: 9dff100spww
Please Enter the width required in 'mm' in the 'Available Options' section
Refer to the below diagram on how to measure the width
| Maximum (Standard) | Minimum |
|---|---|
| 1650mm | 1440mm |
Diff comes complete with the following;
- USA manufactured Axles (31 Spline), 1541 forged induction heat treated
- 10mm Heavy Duty Flanges
- 1350 Yoke
- 5mm Thick
- Ratio of your Choice (If not listed please call)

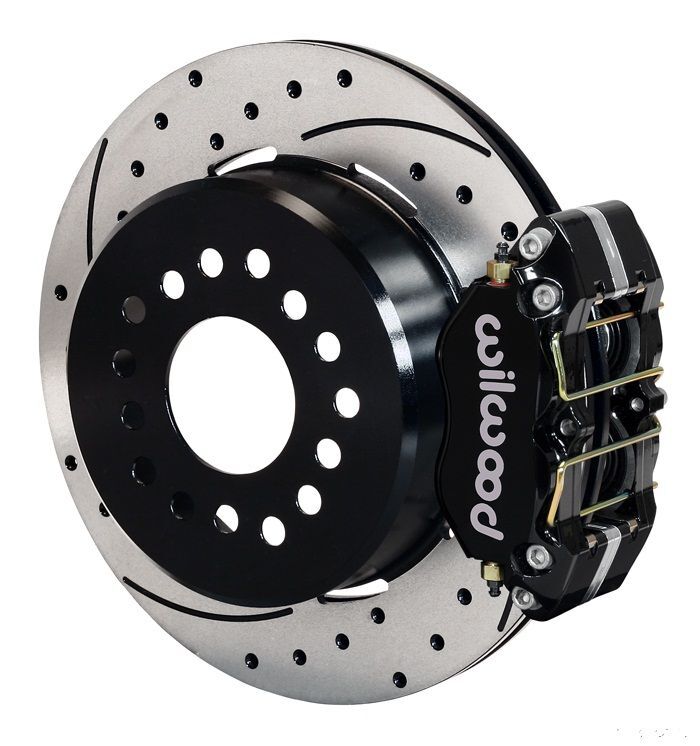

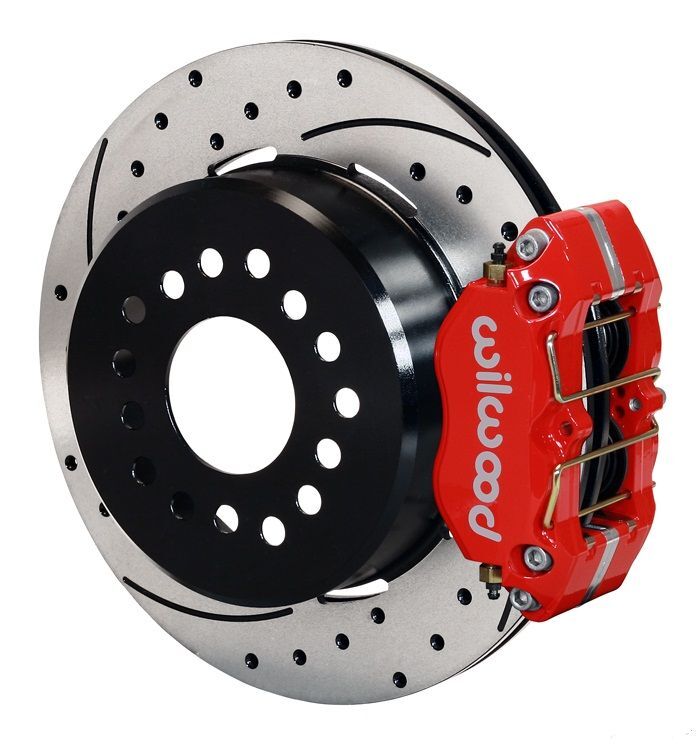

- Choice of Drum or Wilwood Disc Brakes
- Suspension Mounts
- 13" Diameter Wheels will NOT fit
- 3" long 1/2" ARP Wheel Studs
- CNC Laser cut and bent Brackets
- Billet CNC Machined Ends
- Super Heavy Duty 6mm thick Smooth Back Housing
These Diff's are rated between 800 & 900 RWHP
If Custom length, you are responsible for ALL measurements, we DO NOT accept returns.
The Diff's are made to order, if time constraints are an issue, please contact us to discuss and estimated delivery date.
Full Spool Diff's are recommended for Off Road use ONLY.
Please Enter the width required in 'mm' in the 'Available Options' section
Refer to the below diagram on how to measure the width
| Maximum (Standard) | Minimum |
|---|---|
| 1650mm | 1440mm |
| SKU | 9dff100spww |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 83.0000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.420m |
| Shipping Length | 1.650m |
