TURBO 400 HOLDEN V6 VN-VT (8 BOLT CRANK) NOTE: This conversion WILL NOT SUIT an early V6 6 bolt manual crank motor – IT WILL SUIT an early V6 6 bolt automatic crank motor and later model V6 8 bolt motors auto or manual versions – See ‘HOLDEN V6 DIFFERENCES” sheets supplied with these instructions.

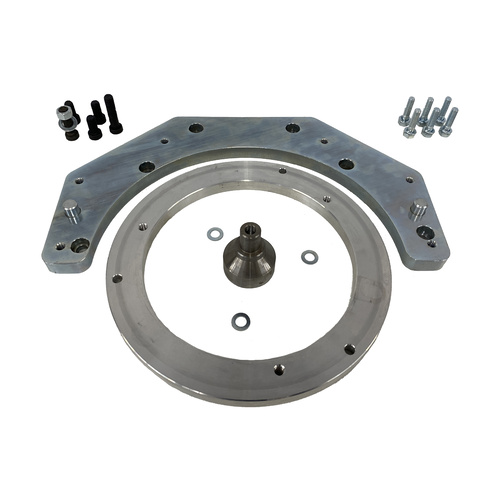

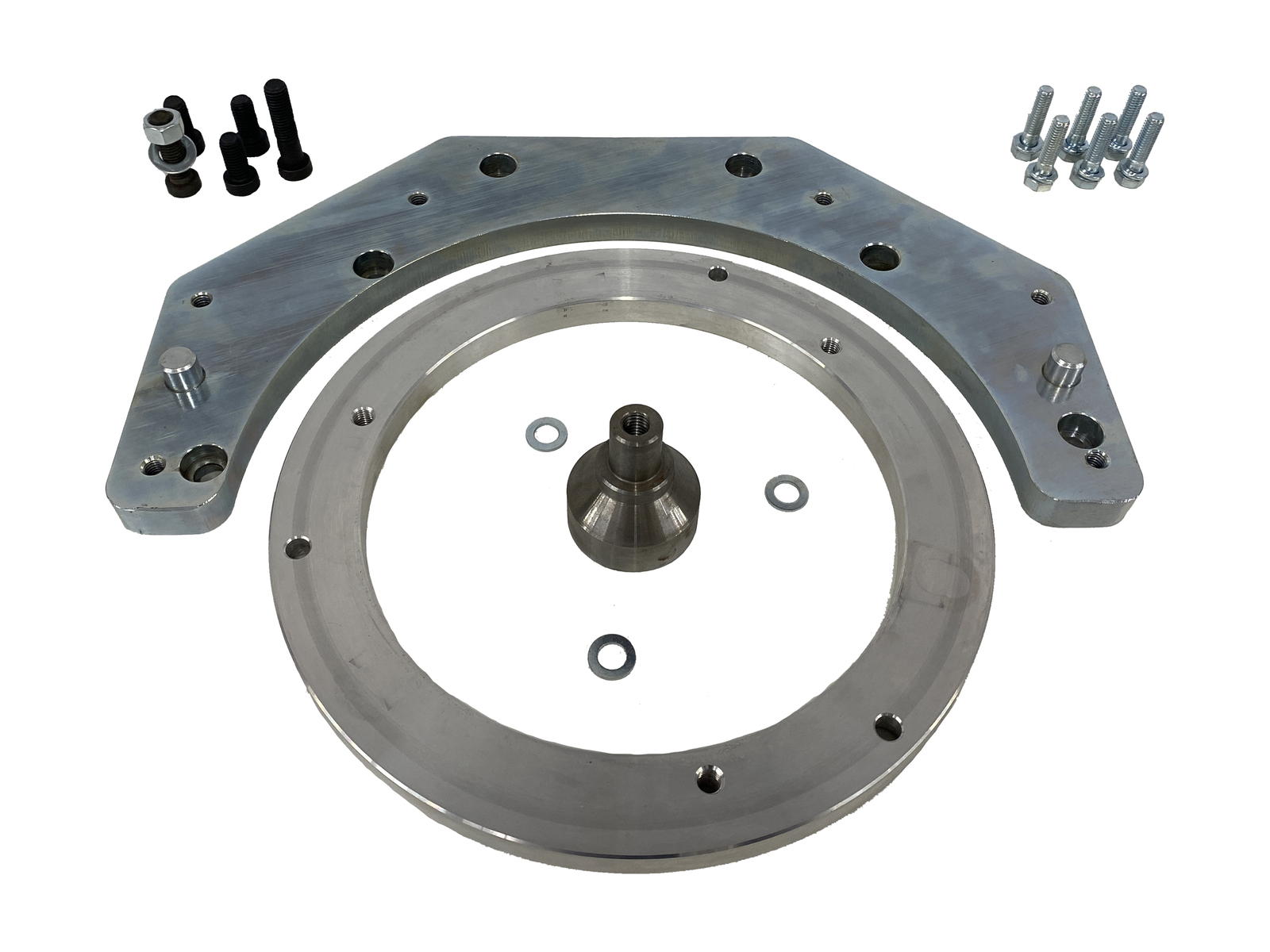

KIT CHECK LIST:

1 off Adaptor plate fitted with dowels – AP 112 & DOWEL 04

1 off M12 x 1.75 P x 50 long LOW HEAD unbrako bolt – adaptor to adaptor

1 off M12 x 1.75P x 40 long unbrako bolt with nut & washer – adaptor to adaptor

3 off M12 x 1.75P x 25 long unbrako bolt – adaptor to motor

1 off Crank/Torque Converter adaptor – CRS1902 – TC LOCATOR 24

1 off Torque converter drive ring – CRS1897 – TC SPACER 15

3 off 10mm Washers – Additional spacers for drive ring when using a Turbo 400 Transmission

6 off 1 1/2 x 3/8 UNC bolt flat and spring washers



This conversion WILL NOT SUIT an early V6 6 bolt manual crank motor

SKU AP112
Shipping Weight 6.0000kg
