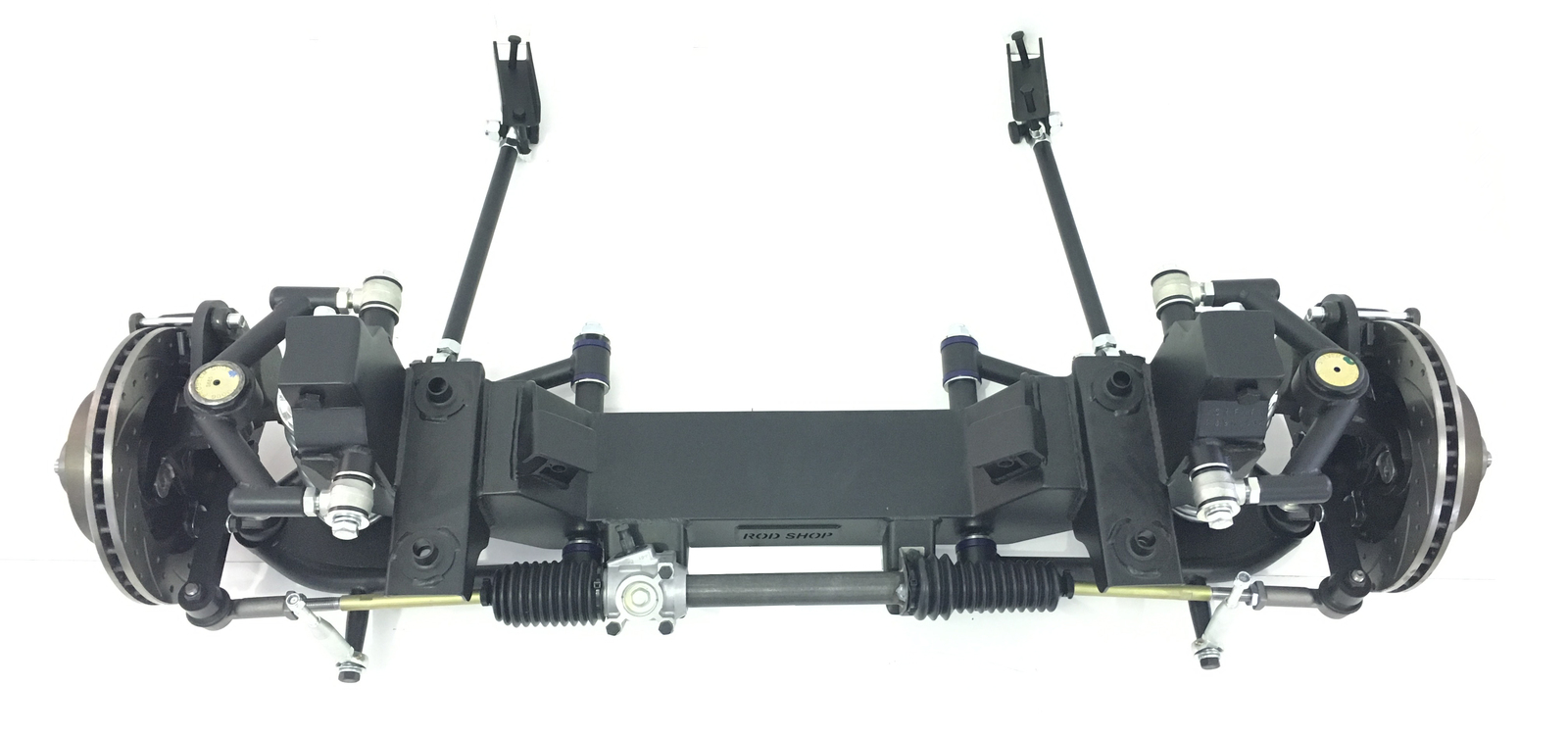

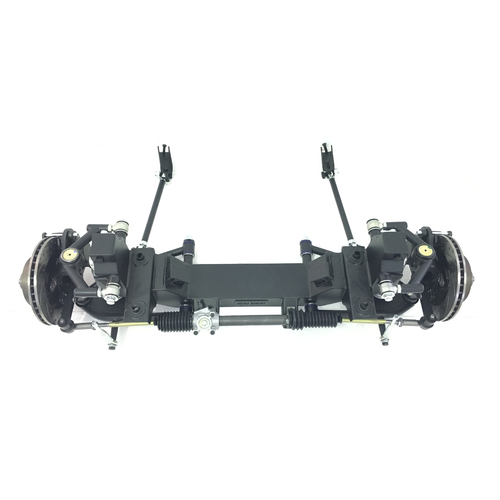

Complete FX & FJ Holden Front End Replacement

Includes

  • Tubular Top and Bottom A Arms
  • Billet Steel Stub Axles
  • Rack and Pinion Steering
  • Fully Adjustable Coil Over Shock Absorbers

    • Choice of EITHER Wilwood OR Our Base Brake Package

    Willwood Package

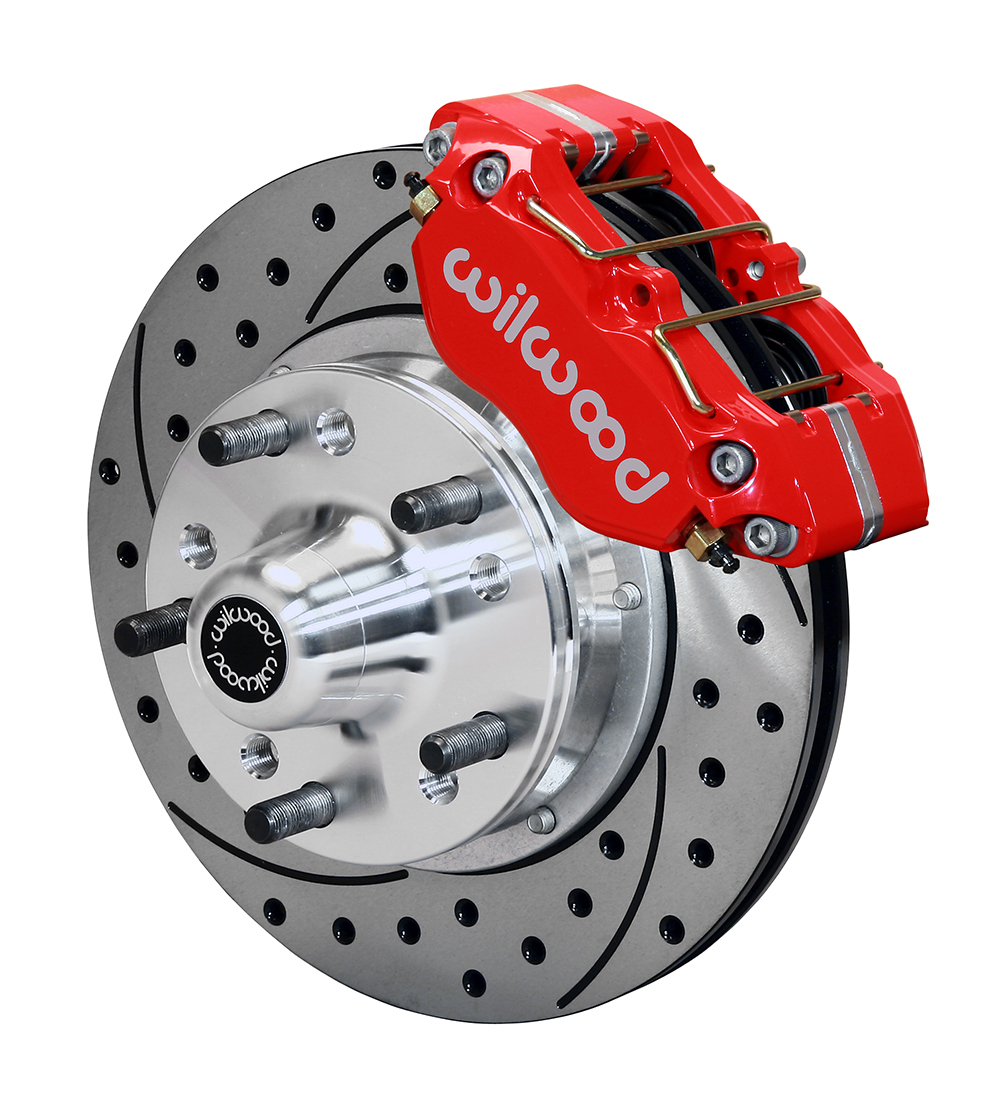

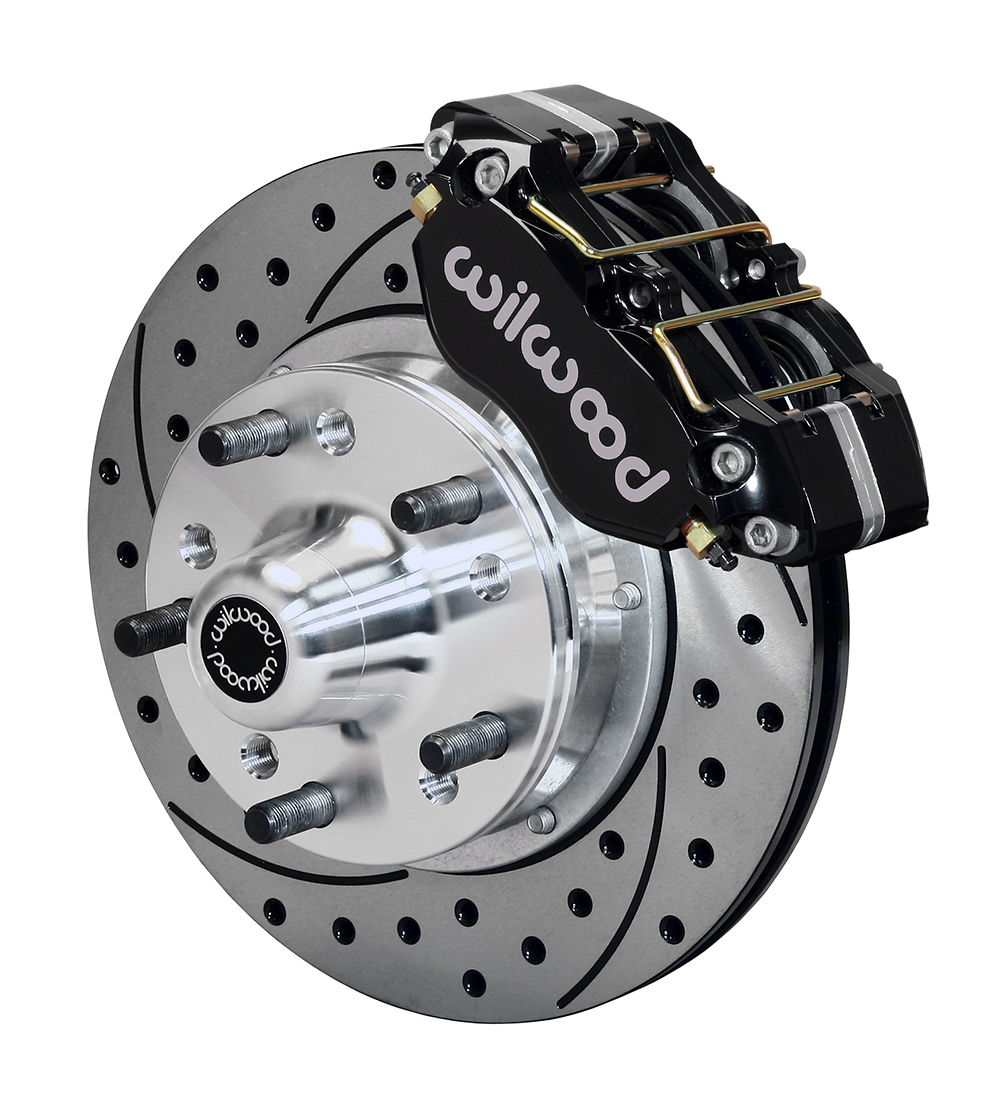

  • 280mm Rotors with EITHER Red or Black 4 Piston Dust Booted Calipers
  • 320mm Rotors with EITHER Red or Black 4 Piston Dust Booted Calipers

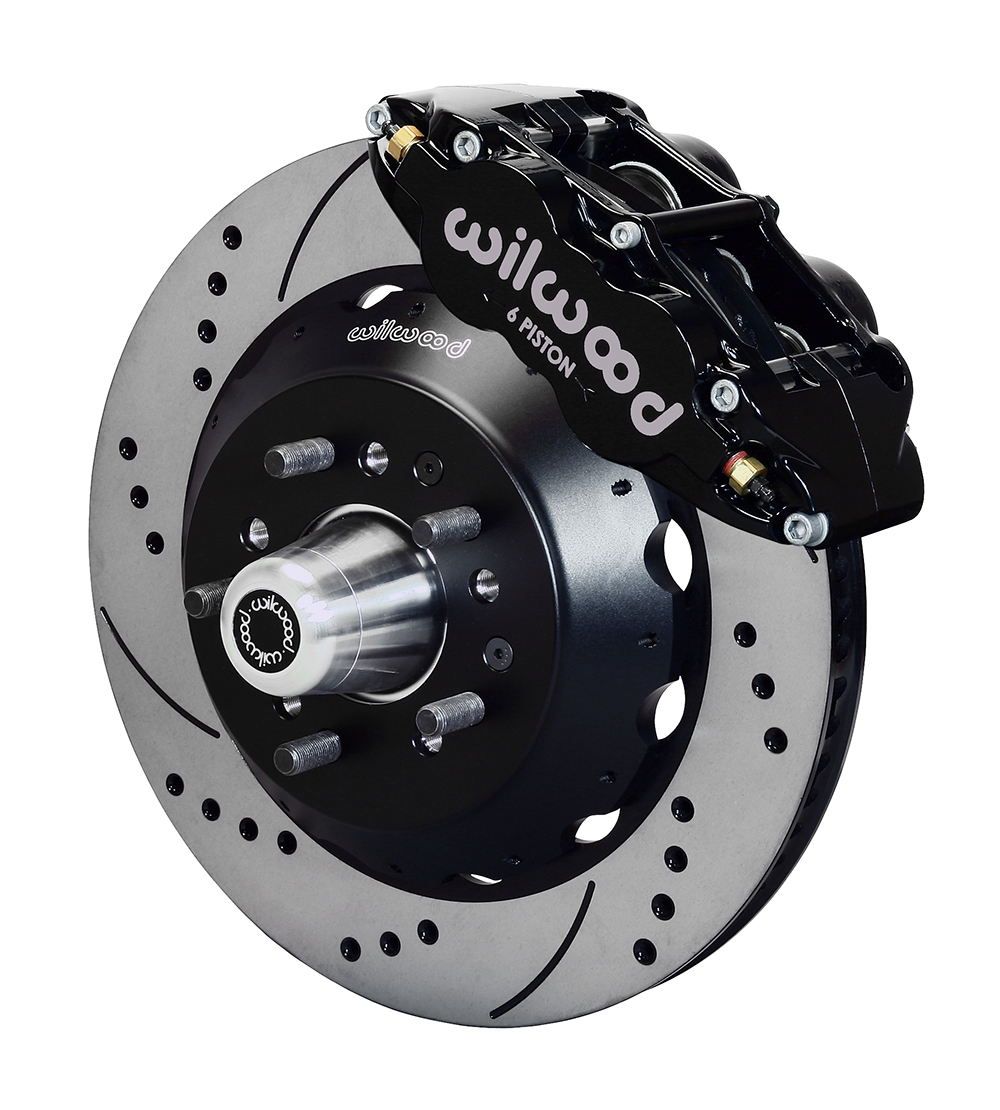

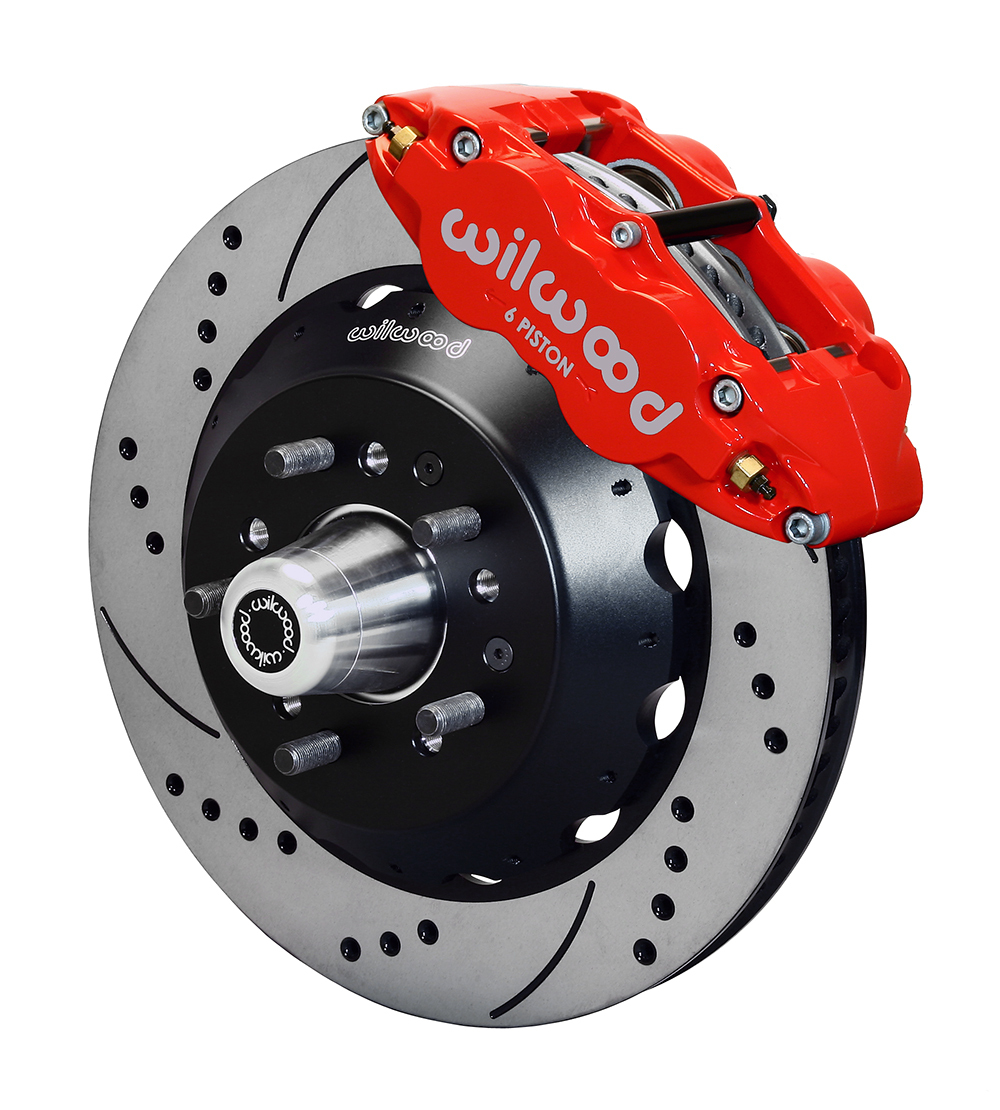

  • 355mm Rotors with EITHER Red or Black 6 Piston Dust Booted Calipers

    • Base Brake Package is the DEFAULT on our IFS Front Ends

  • 280mm Diameter Disc
  • Wilwood Single Piston Black Caliper

    • This Product is Fabricated On-Site, there is a Build Time which can range from 12 Weeks to 24 Weeks. If this is a Concern, PLEASE Call Us on 03 5472 2853 BEFORE Purchasing

    MUST Use a HR Holden Sway Bar (NOT Included)

    The Rear Trailing Arms are used to Connect to a Rod Shop Chassis Kit (If YOU Do Not have a Chassis Kit, you May want to look at Purchasing one to Link up the Arms and Strengthen the Chassis)

    Some Modifications are needed to the Rear Mounting Rubber Saddles, they Need to be Cut and Hammered Flat and Welded to Fit your New IFS Crossmember

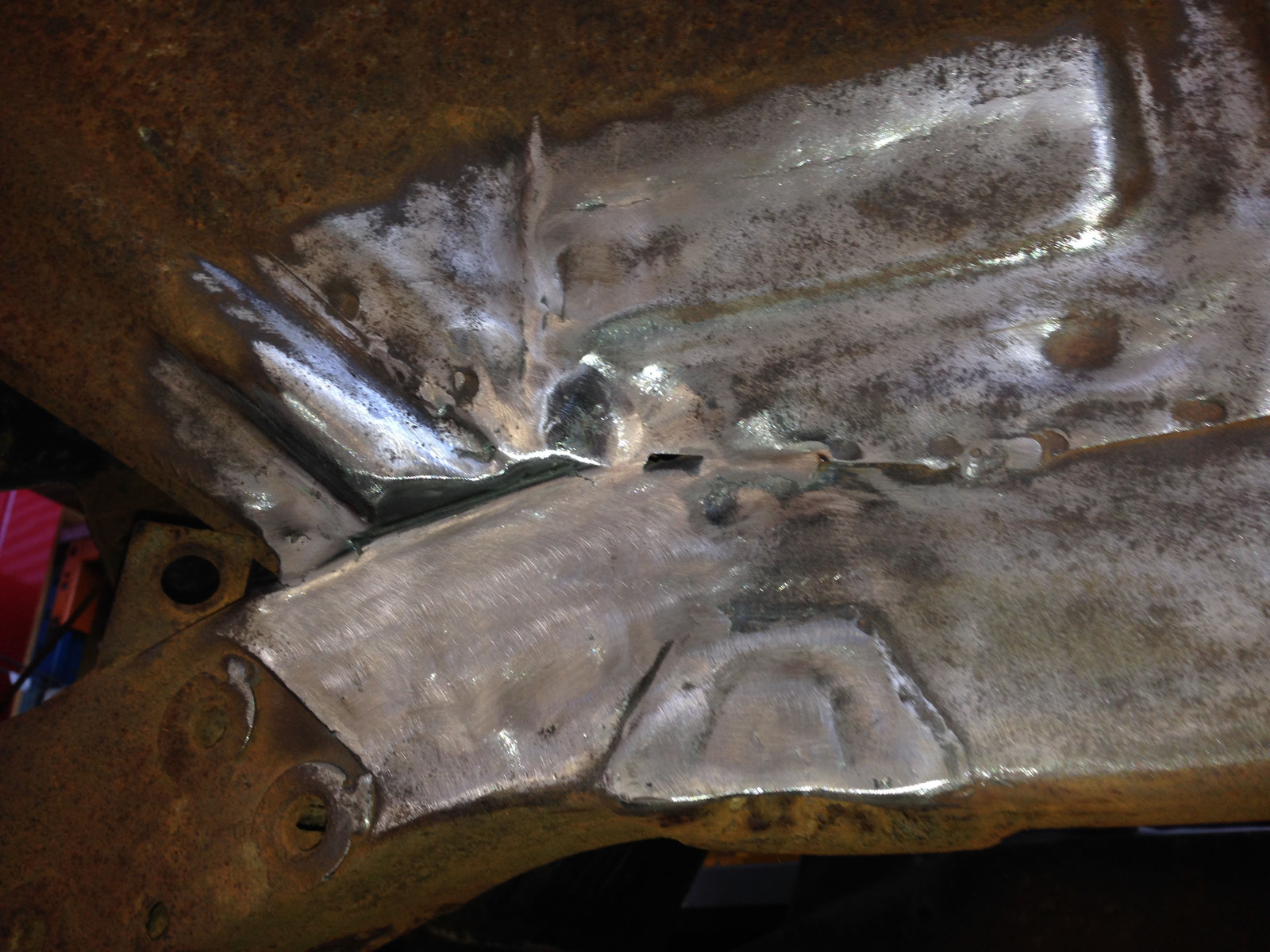

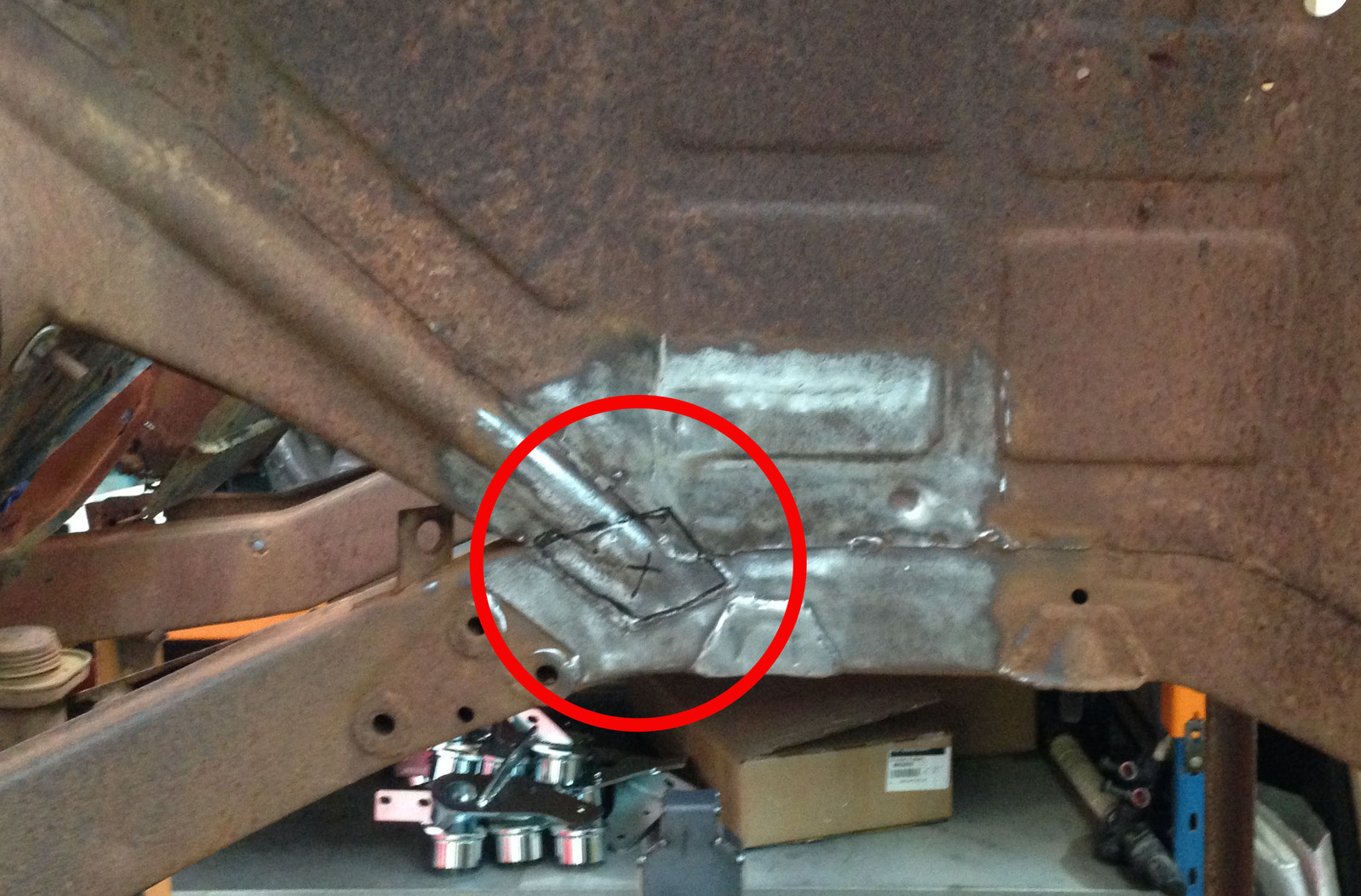

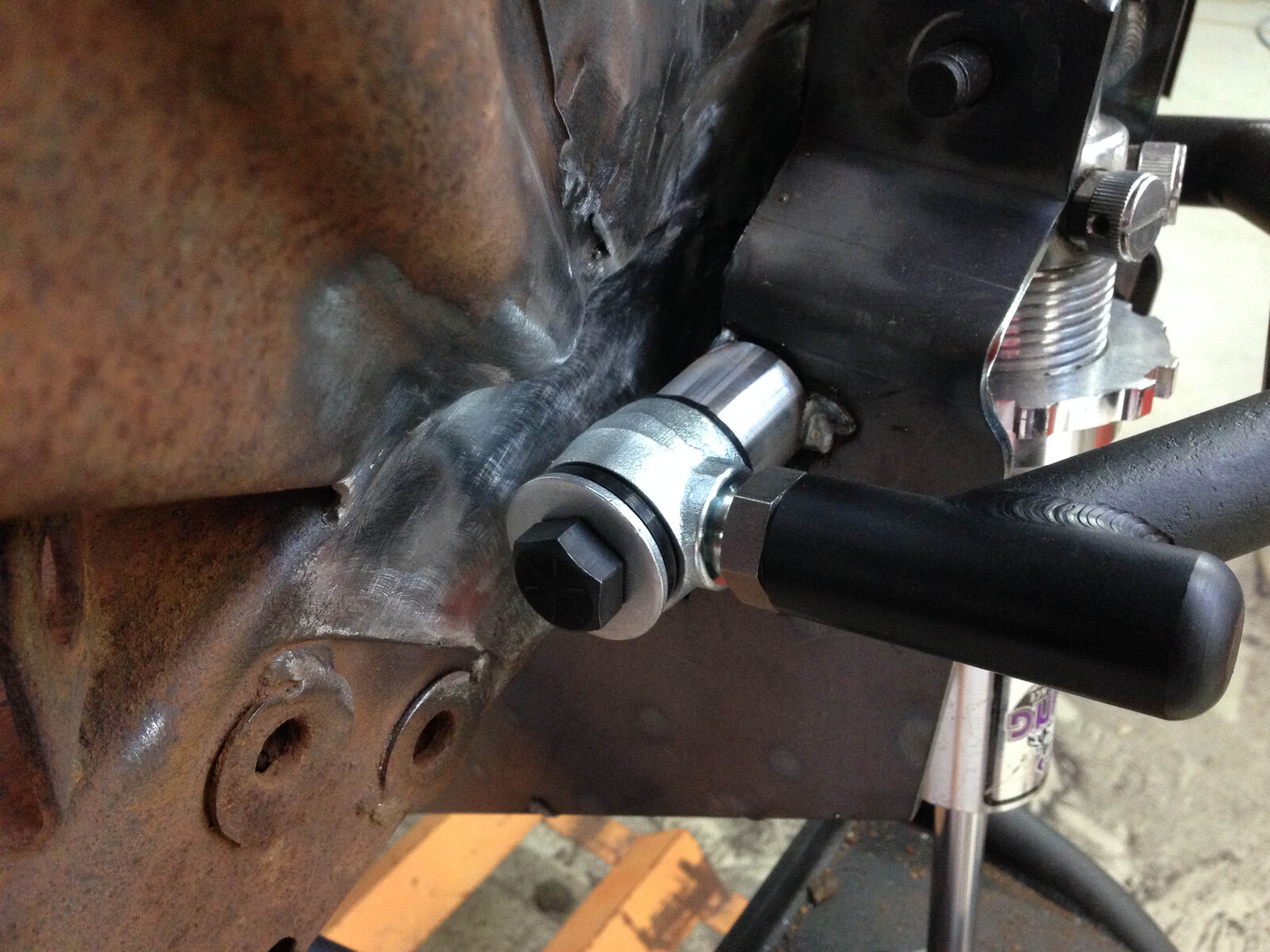

    The Section Marked in the Following Photos needs to be Cut and Grinded as Marked. Once Done Weld the Supplied Plate into Position and Grind Smooth

    Includes

  • Tubular Top and Bottom A Arms
  • Billet Steel Stub Axles
  • Rack and Pinion Steering
  • Fully Adjustable Coil Over Shock Absorbers
    • SKU ifsfehfxfj
    Brand Castlemaine Rod Shop
    Shipping Weight 83.0000kg
    Shipping Width 0.420m
    Shipping Height 0.420m
    Shipping Length 1.650m
