Wilwood Calipers to Standard HQ-WB Holden Rotor - Factory Type Mounting
$895.00
or 4 payments of $223.75 with
Info
Make 4 interest-free payments of $223.75 fortnightly and receive your order now.

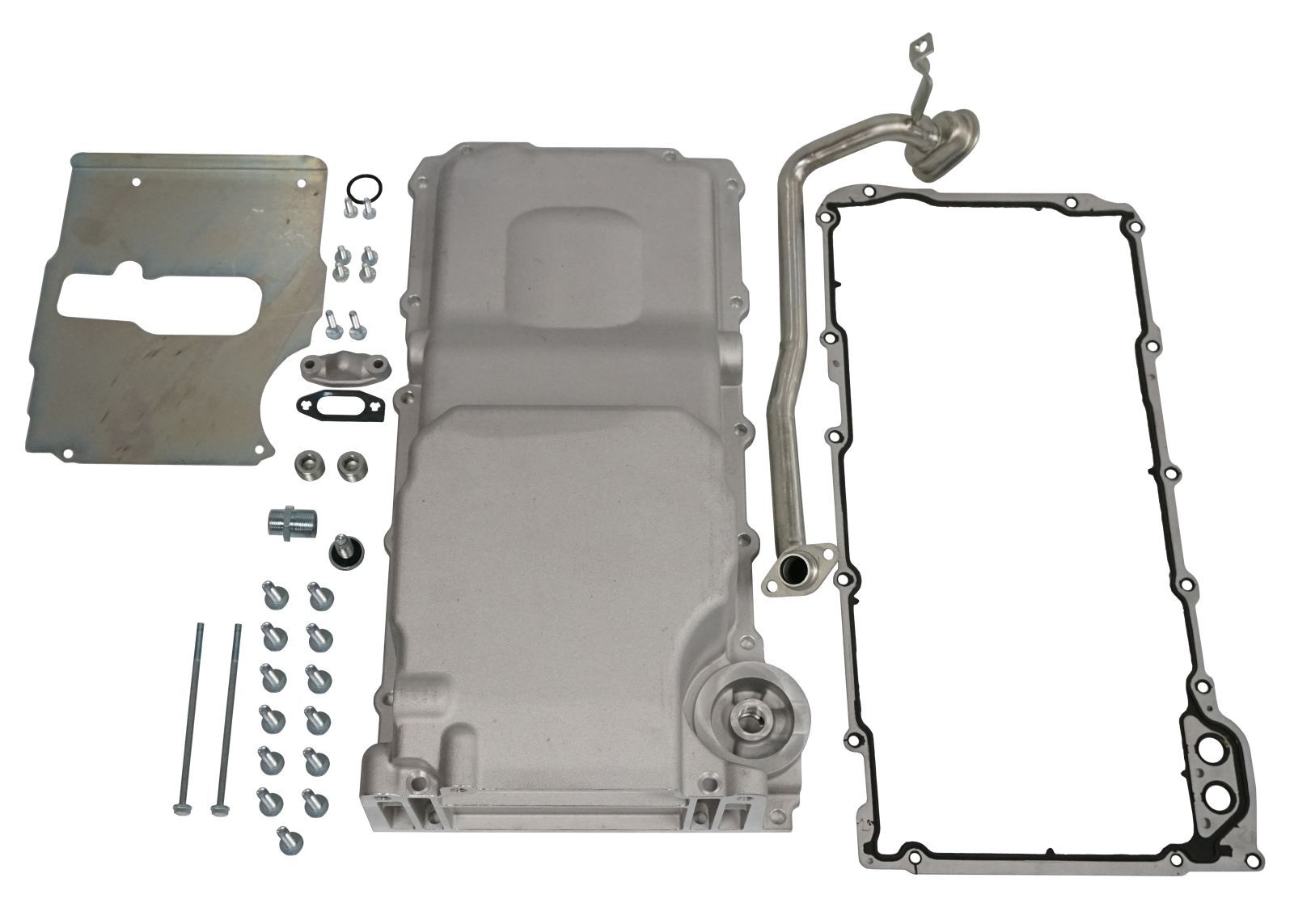

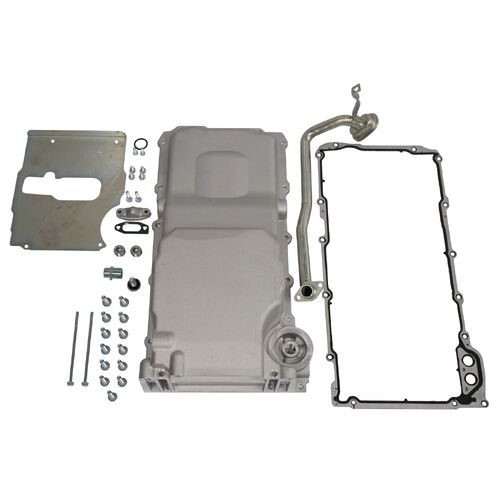

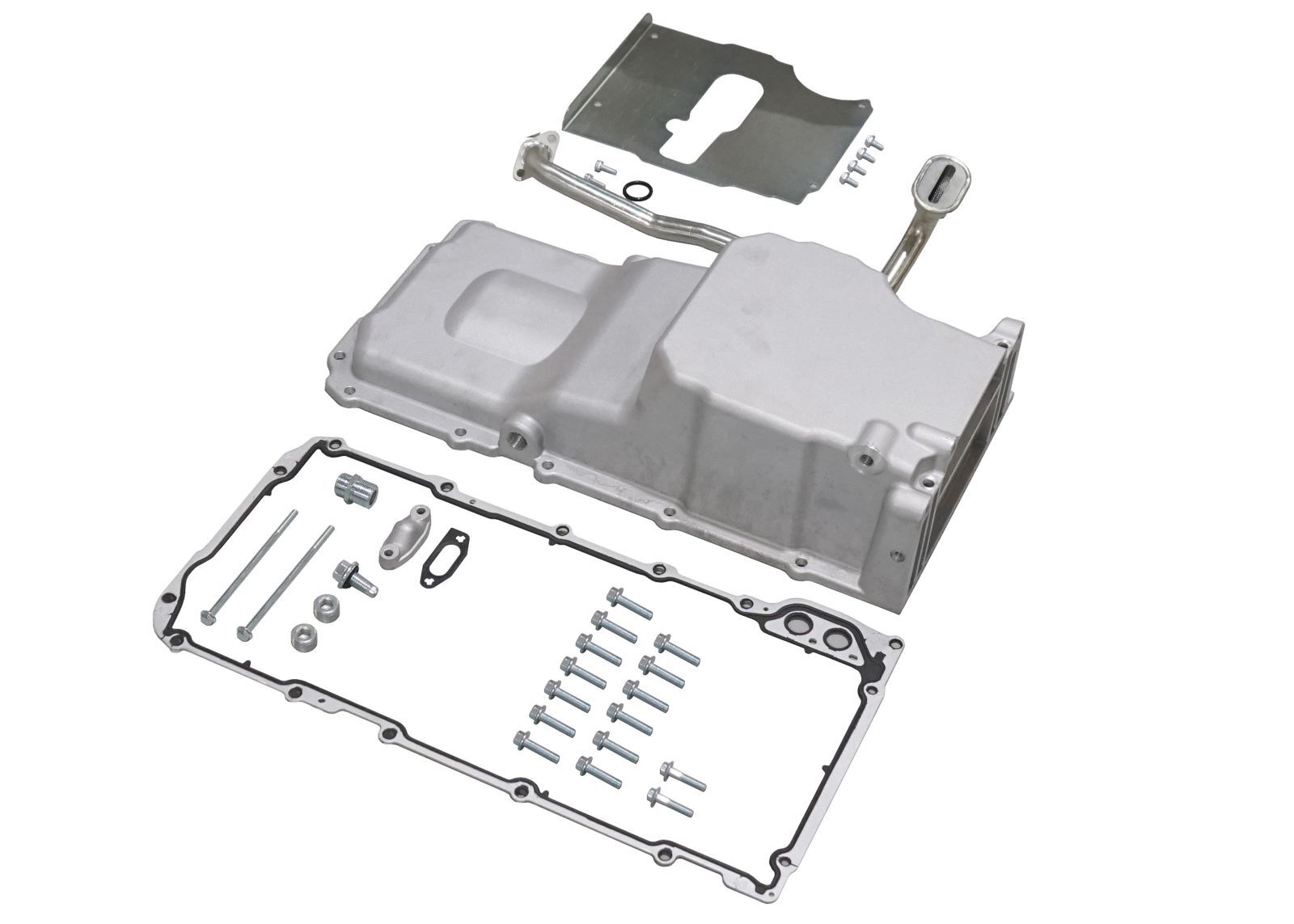

Sump for LS1, LS2, LS3, LSA & LSX Engines (Check Description for Car Compatability)
SKU: sump15
Refer to the Below Car Compatibility & Restrictions as We Cannot Guarantee it will Fit when using Other Manufacturers Components
Notes
| CNC Machined Cast Aluminium Sump with Screw on Oil Filter |
| Clears 4.25" Stroke with MOST Steel Rods |
| 6L Oil Capacity |
| Rear of Pan - 150mm Deep, 240mm Wide |
| Front of Pan - 45mm Deep, 210mm Wide |
Includes
| Sump |
| Oil Pickup Tube |
| Splash Tray / Baffle |
| Magnetic Drain Plug |
| Gasket |
| Bolt Kit |
| Fitting Instructions |
Not Included
| Dipstick (Uses Factory Dipstick, Relocated to Right Hand Side) |
| Oil Filter (Part # Z160) |
Car Compatability & Restrictions
| Holden - HQ, HJ, HX, HZ & WB |
| Castlemaine Rod Shop Engine Mounts |
Refer to the Below Car Compatibility & Restrictions as We Cannot Guarantee it will Fit when using Other Manufacturers Components
Notes
| CNC Machined Cast Aluminium Sump with Screw on Oil Filter |
| Clears 4.25" Stroke with MOST Steel Rods |
| 6L Oil Capacity |
| Rear of Pan - 150mm Deep, 240mm Wide |
| Front of Pan - 45mm Deep, 210mm Wide |
Includes
| Sump |
| Oil Pickup Tube |
| Splash Tray / Baffle |
| Magnetic Drain Plug |
| Gasket |
| Bolt Kit |
| Fitting Instructions |
Not Included
| Dipstick (Uses Factory Dipstick, Relocated to Right Hand Side) |
| Oil Filter (Part # Z160) |
Car Compatability & Restrictions
| Holden - HQ, HJ, HX, HZ & WB |
| Castlemaine Rod Shop Engine Mounts |
Refer to the Below Car Compatibility & Restrictions as We Cannot Guarantee it will Fit when using Other Manufacturers Components
Notes
| CNC Machined Cast Aluminium Sump with Screw on Oil Filter |
| Clears 4.25" Stroke with MOST Steel Rods |
| 6L Oil Capacity |
| Rear of Pan - 150mm Deep, 240mm Wide |
| Front of Pan - 45mm Deep, 210mm Wide |
Includes
| Sump |
| Oil Pickup Tube |
| Splash Tray / Baffle |
| Magnetic Drain Plug |
| Gasket |
| Bolt Kit |
| Fitting Instructions |
Not Included
| Dipstick (Uses Factory Dipstick, Relocated to Right Hand Side) |
| Oil Filter (Part # Z160) |
Car Compatability & Restrictions
| Holden - HQ, HJ, HX, HZ & WB |
| Castlemaine Rod Shop Engine Mounts |
| SKU | sump15 |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 8.0000kg |
| Shipping Width | 0.390m |
| Shipping Height | 0.230m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.053820000m3 |
