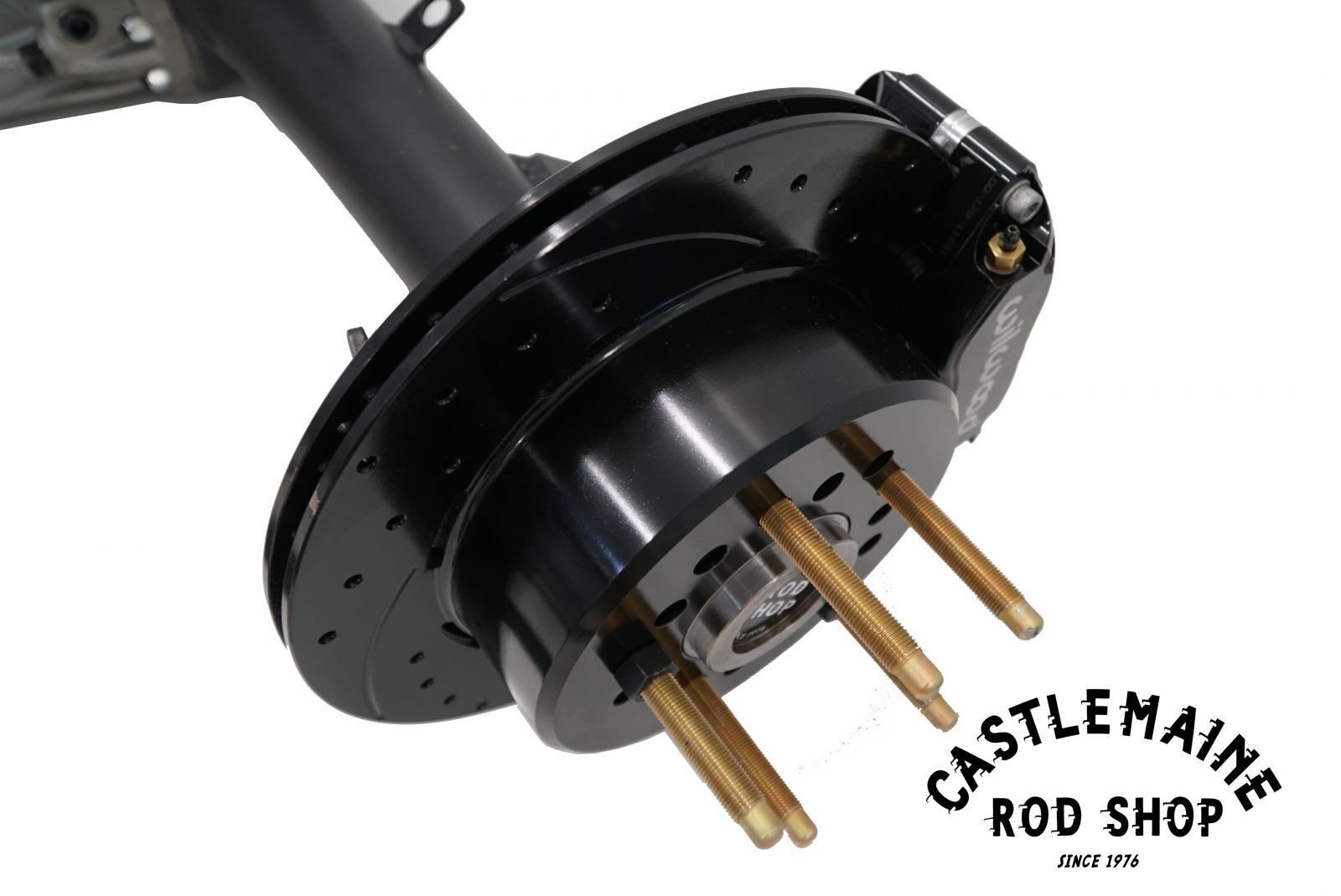

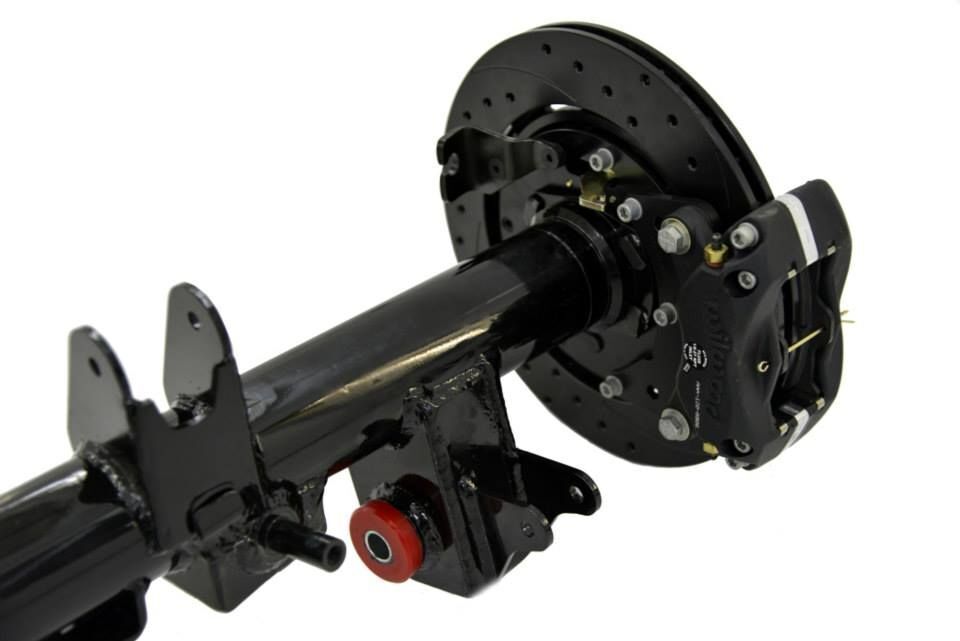

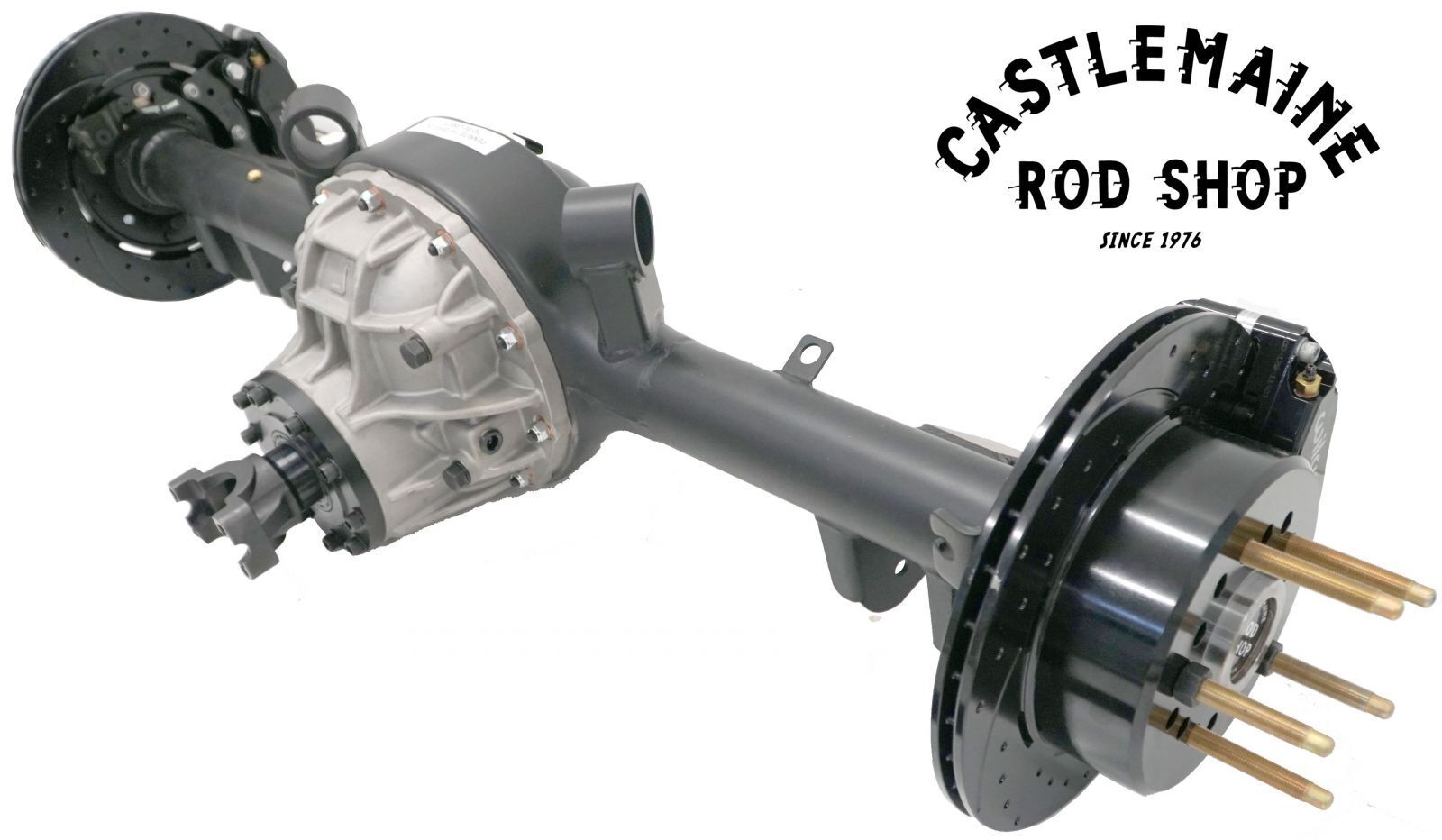

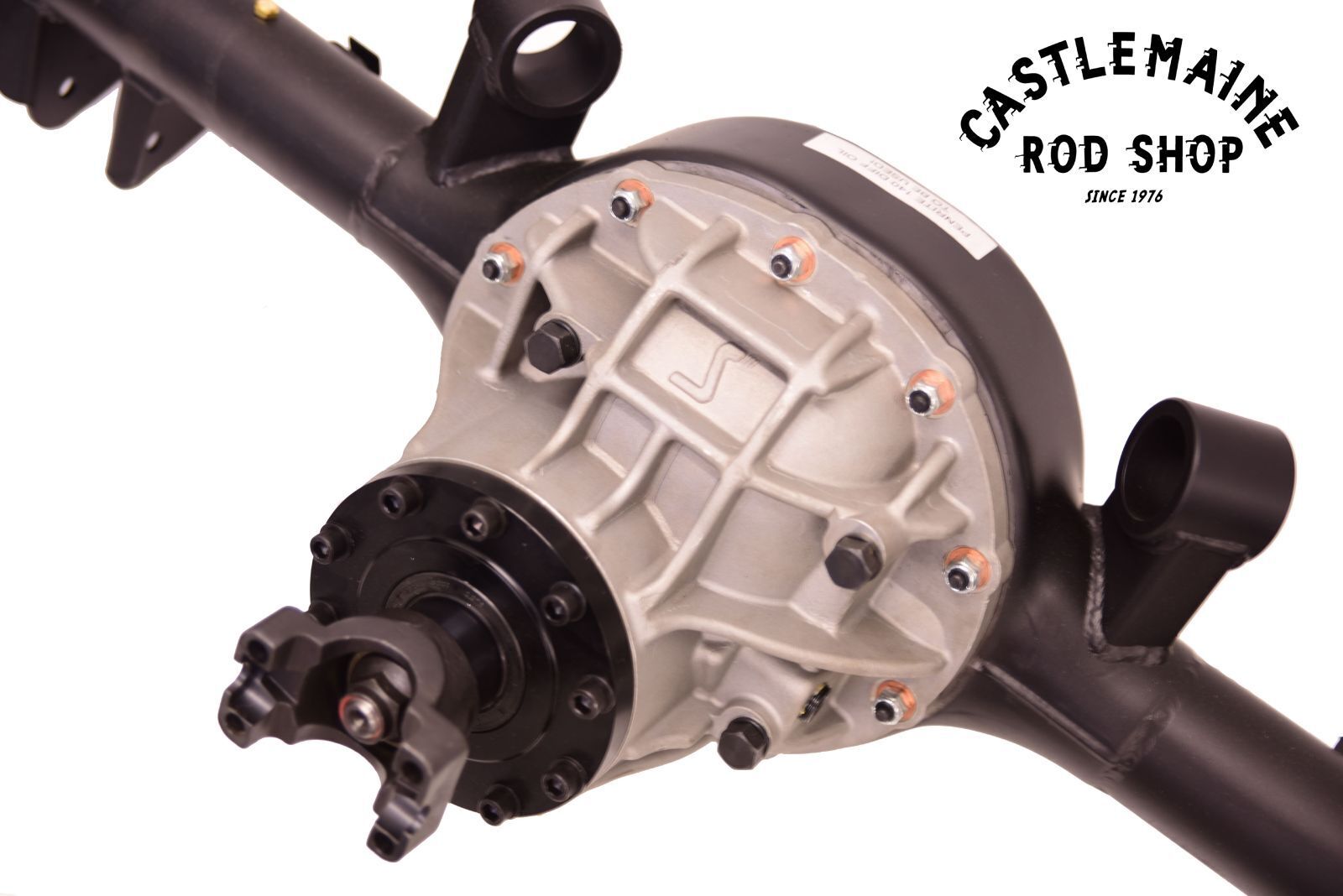

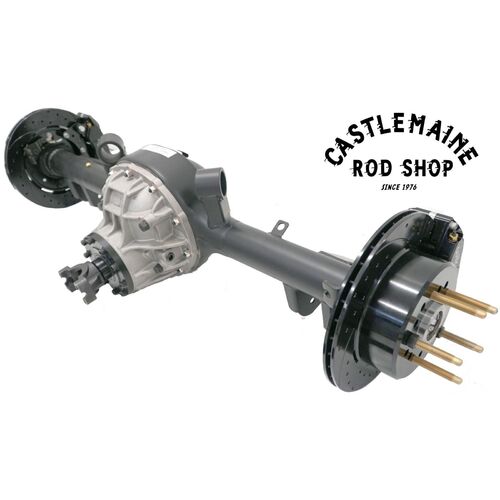

9" Diff for RX3 & RX4 Mazda's
Price Ranges from $3500.00 to $5000.00
SKU: 9dmrx34
PLEASE NOTE: There is a Build Time for this Product (Around 4-5 months). If you need an Estimated Date of Delivery then PLEASE Contact Us on 03 54722853 before Purchasing.
The Diff's are Available in Multiple Widths, the Table & Diagram below Shows the Maximum & Minimum Widths and How to Measure
If Length is NOT the Maximium (Standard) Width YOU ARE Responsible for the Measurements, we WILL NOT Accept Returns
IN THE WIDTH OPTION PLEASE STATE WHAT MODEL THIS IS TO SUIT.
| Maximum (Standard) | Minimum |
|---|---|
|
Standard RX3 - 1350mm Standard RX4 - 1430mm |
RX3 - 1290mm RX4 - 1330mm |
Diff comes Complete with the Following;
- USA Manufactured Axles (31 Spline), 1541 Forged Induction Heat Treated
- 10mm Heavy Duty Flanges
- 1350 Yoke
- 5mm Thick Axle Tubes
- Ratio of Your Choice

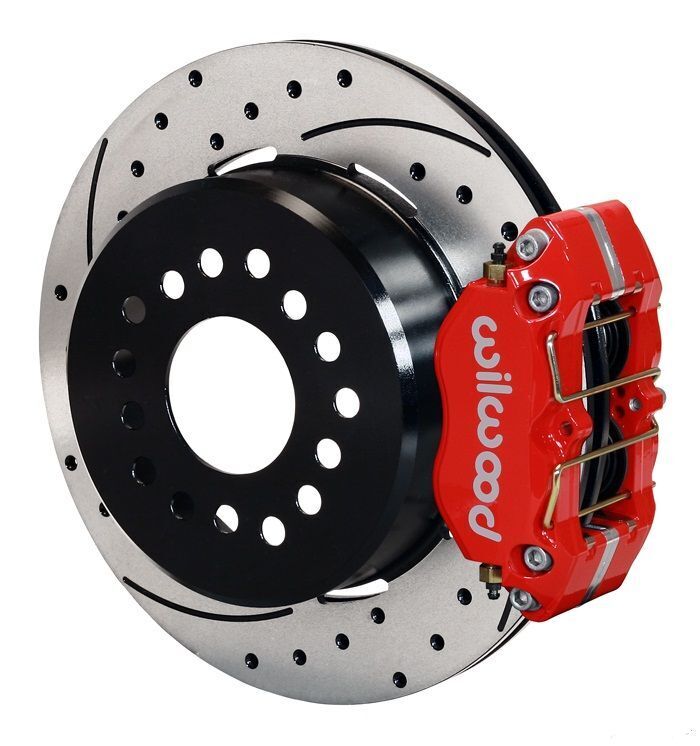

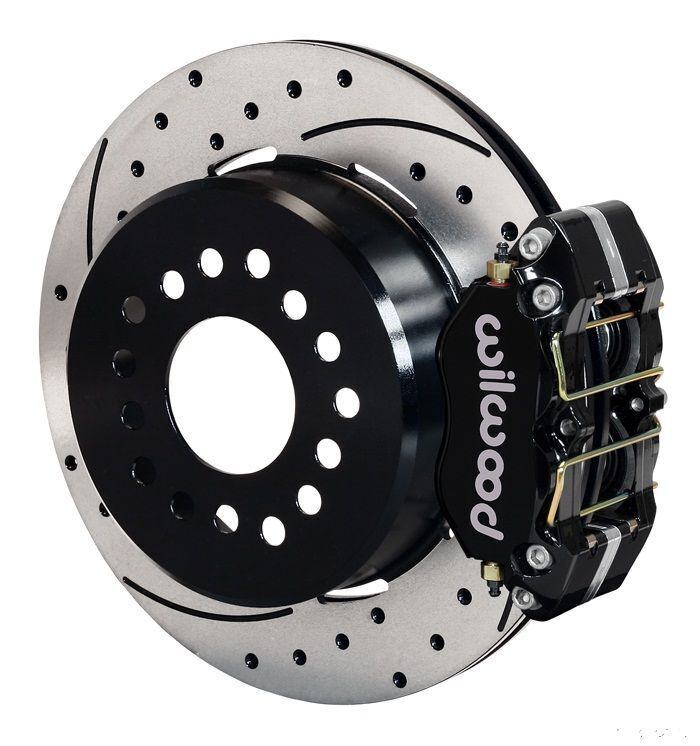

- Choice of Drum or Wilwood Disc Brakes
- Suspension Mounts
- 3" long 1/2" ARP Wheel Studs
- CNC Laser Cut and Bent Brackets
- Billet CNC Machined Ends
- Super Heavy Duty 6mm thick Smooth Back Housing
These Diff's are Rated between 800 & 900 RWHP
Full Spool Diff's are recommended for Off Road use ONLY.
PLEASE NOTE: There is a Build Time for this Product (Around 4-5 months). If you need an Estimated Date of Delivery then PLEASE Contact Us on 03 54722853 before Purchasing.
The Diff's are Available in Multiple Widths, the Table & Diagram below Shows the Maximum & Minimum Widths and How to Measure
If Length is NOT the Maximium (Standard) Width YOU ARE Responsible for the Measurements, we WILL NOT Accept Returns
IN THE WIDTH OPTION PLEASE STATE WHAT MODEL THIS IS TO SUIT.
| Maximum (Standard) | Minimum |
|---|---|
|
Standard RX3 - 1350mm Standard RX4 - 1430mm |
RX3 - 1290mm RX4 - 1330mm |
| SKU | 9dmrx34 |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 83.0000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.420m |
| Shipping Length | 1.650m |
